The In-Between Implant

  • cover image

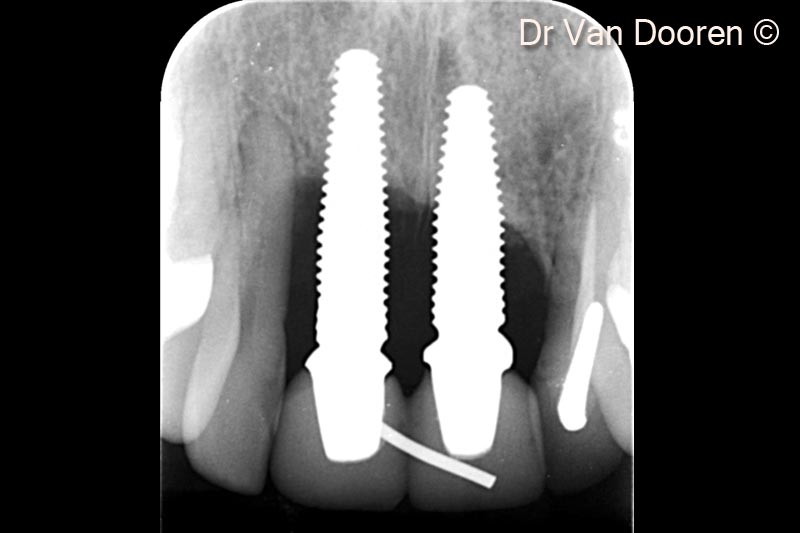

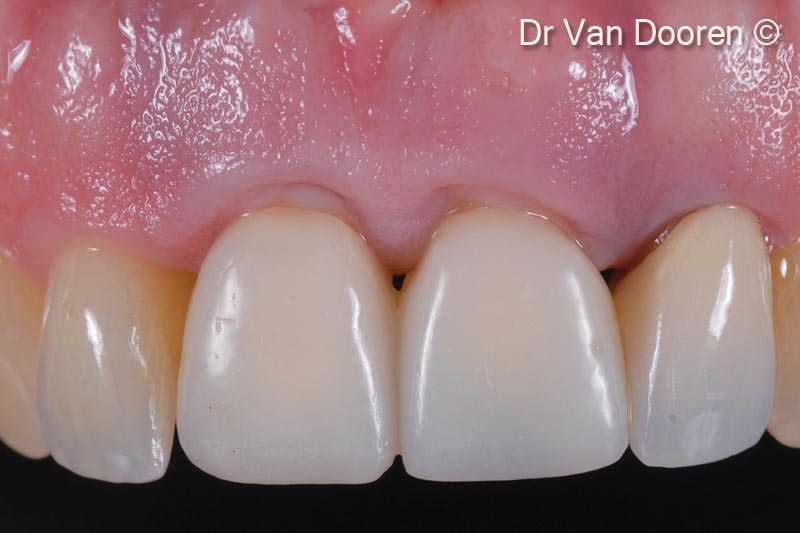

  • 1. The patient presented with severe peri-implantitis around 2 central incisors zirconia implants
  • 2. The patient presented with severe peri-implantitis around 2 central incisors zirconia implants

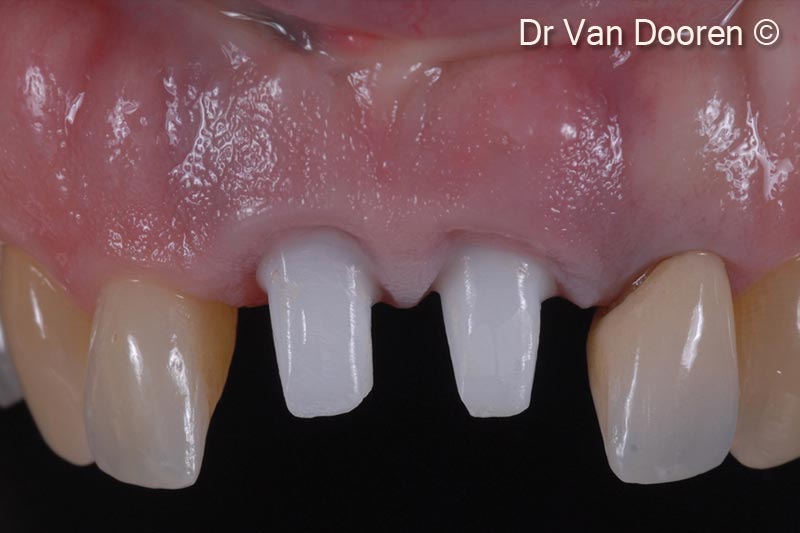

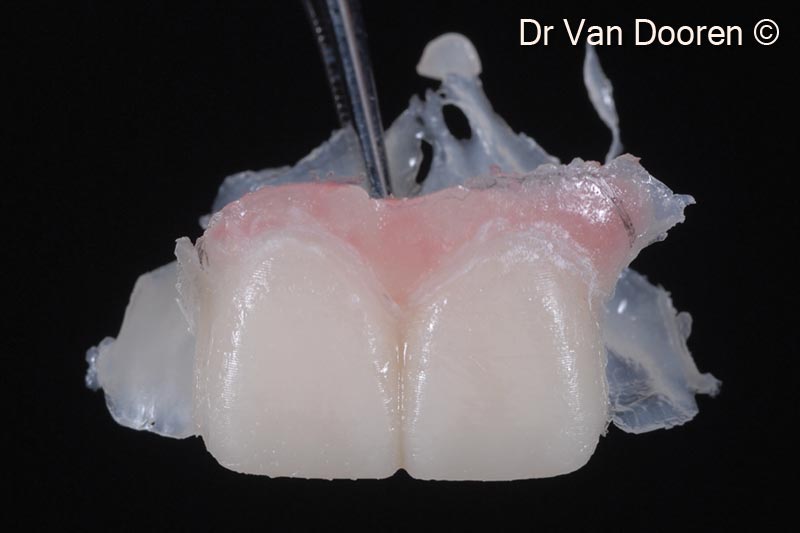

  • 3. The old crowns were removed, and a provisional bridge was fabricated with a new design proposal. Pink composite was added to have a clear idea of the incisal edge position/toothform and artificial gingival replacement
  • 4. The old crowns were removed, and a provisional bridge was fabricated with a new design proposal. Pink composite was added to have a clear idea of the incisal edge position/toothform and artificial gingival replacement

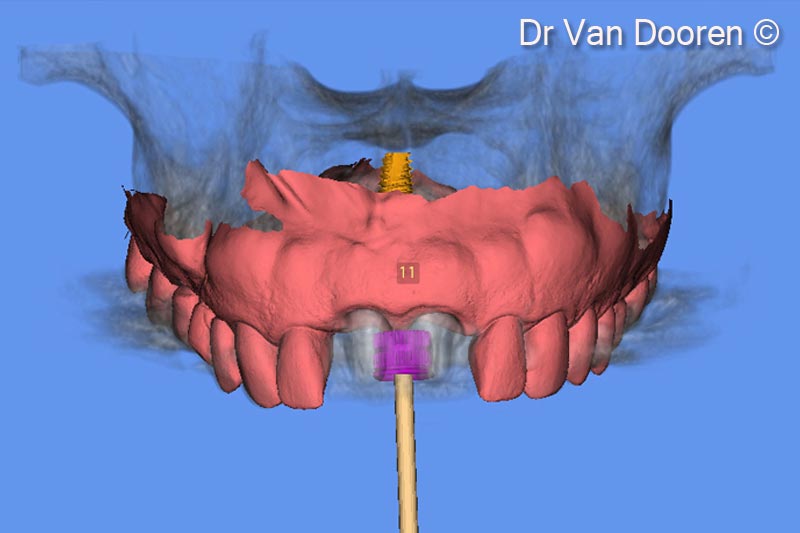

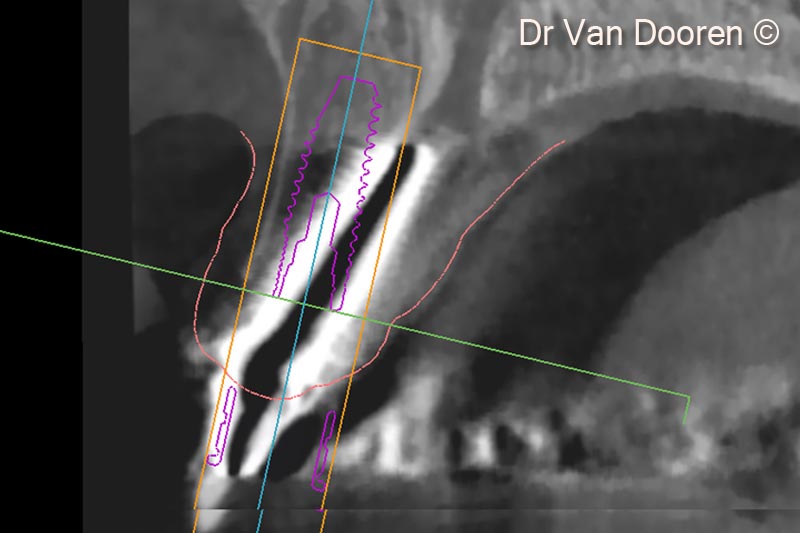

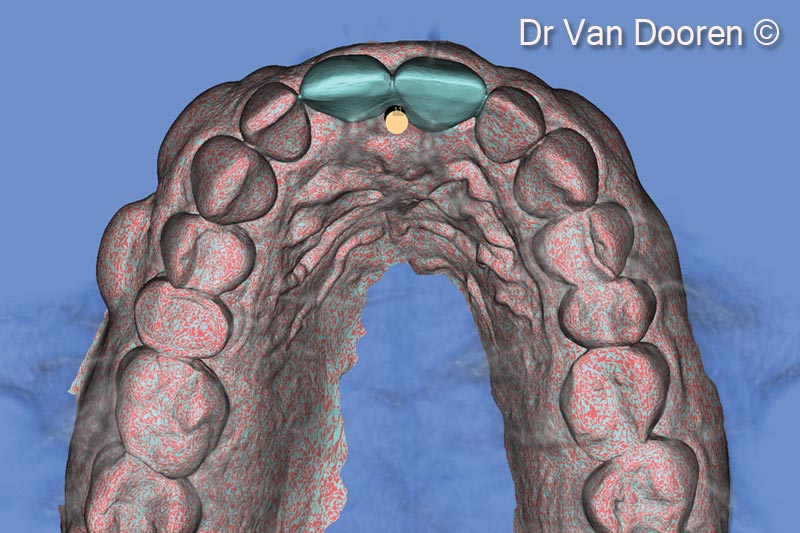

  • 5. Superimposing the STL file and the Dicom files in the planning software (MSoft/MIS) allowed us to plan the exact position of the new implant
  • 6. Superimposing the STL file and the Dicom files in the planning software (MSoft/MIS) allowed us to plan the exact position of the new implant

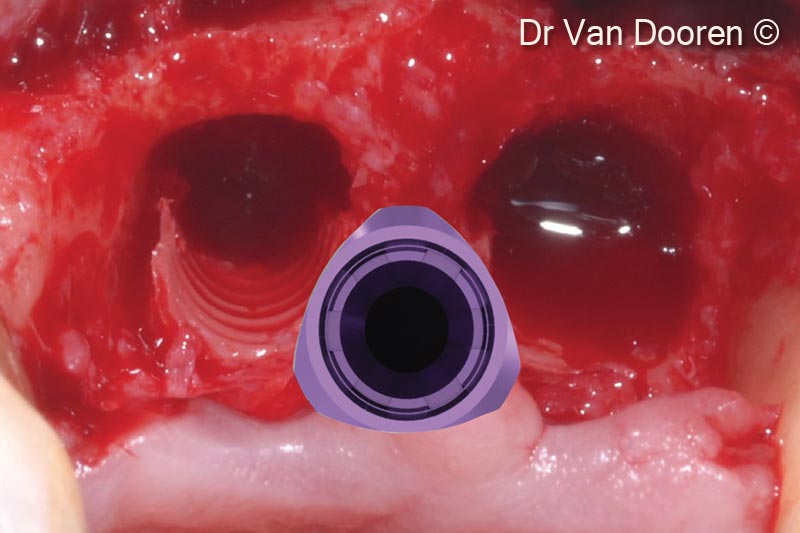

  • 7. Superimposing the STL file and the Dicom files in the planning software (MSoft/MIS) allowed us to plan the exact position of the new implant

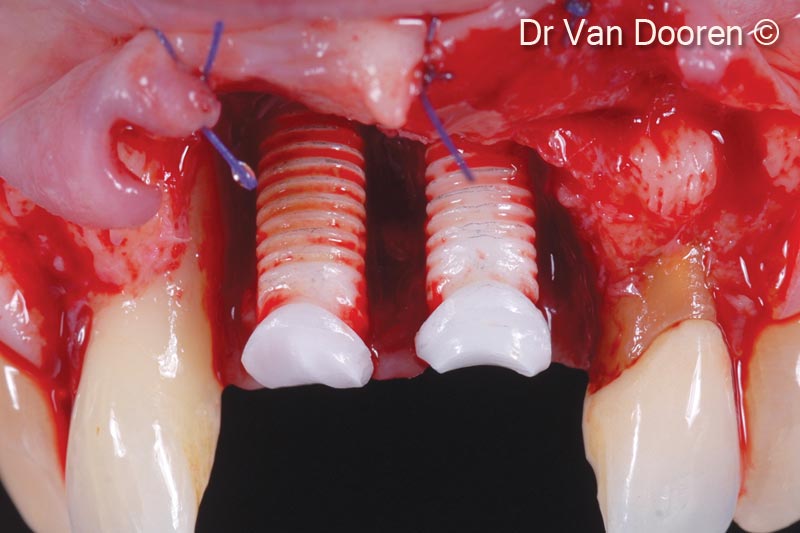

  • 8.  Considerable bone loss around the existing implants and mesially to the lateral incisors: the two implants were removed
  • 9. Considerable bone loss around the existing implants and mesially to the lateral incisors: the two implants were removed

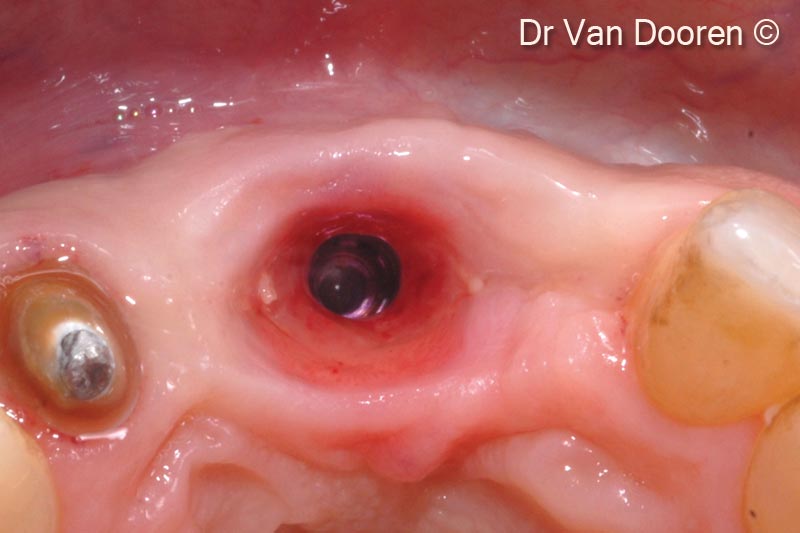

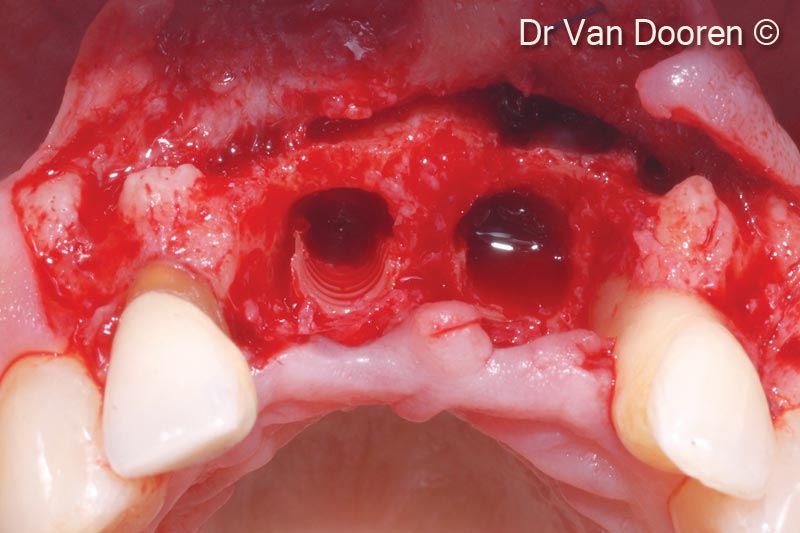

  • 10. Occlusal view after implant removal: the ridge was surgically corrected and flattened after implant removal. The implant will be placed in a more palatal and “in between” position compared to the extraction sockets to get excellent primary stability for immediate loading

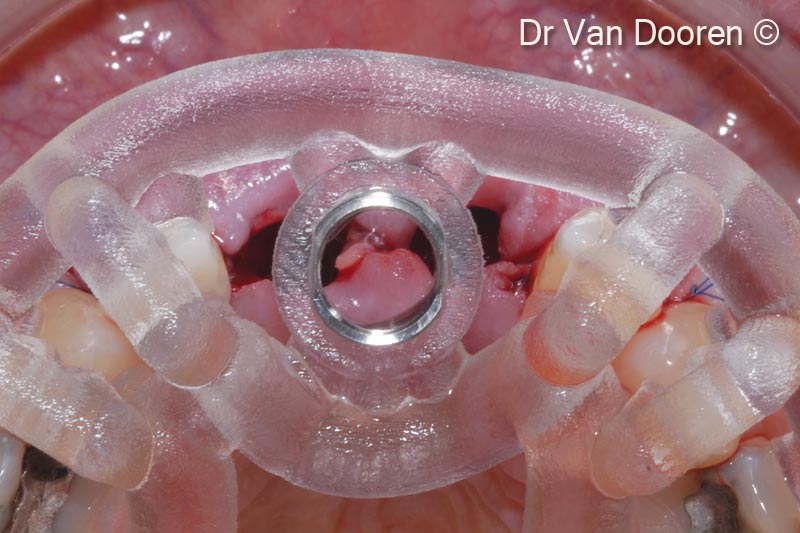

  • 11. Placement of the implant (V3/ RP 3,9 mm - 13 mm) using the MGuide (MIS). The palatal position for obtaining a screw retained restoration is the key point in this specific case

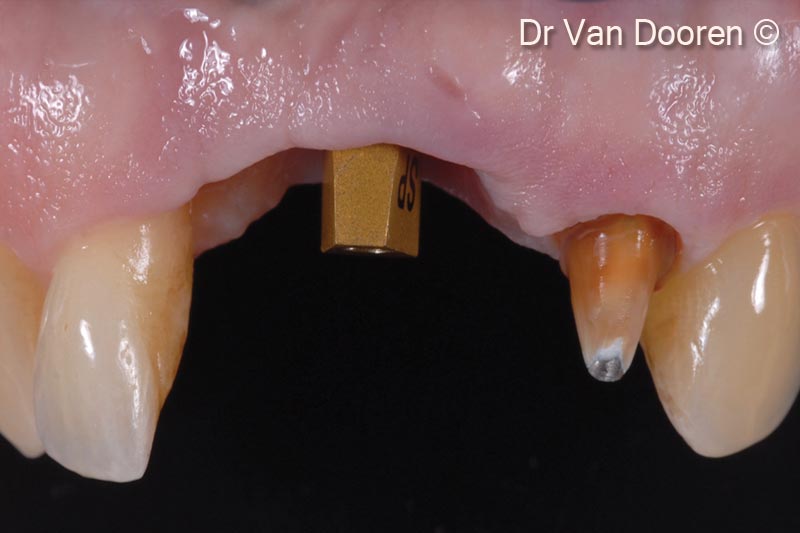

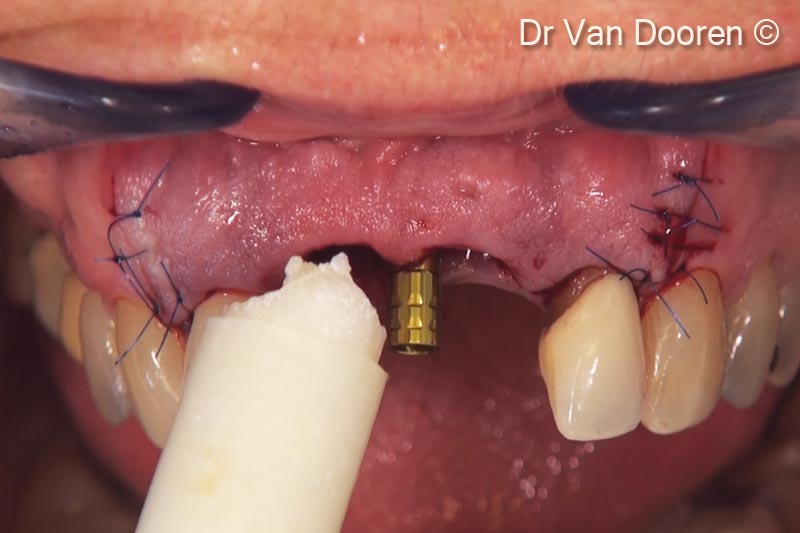

  • 12.  After placement of a provisional cylinder, OsteoBiol® GTO® was placed and packed, with the instruments and around the implant in order to support the soft tissue

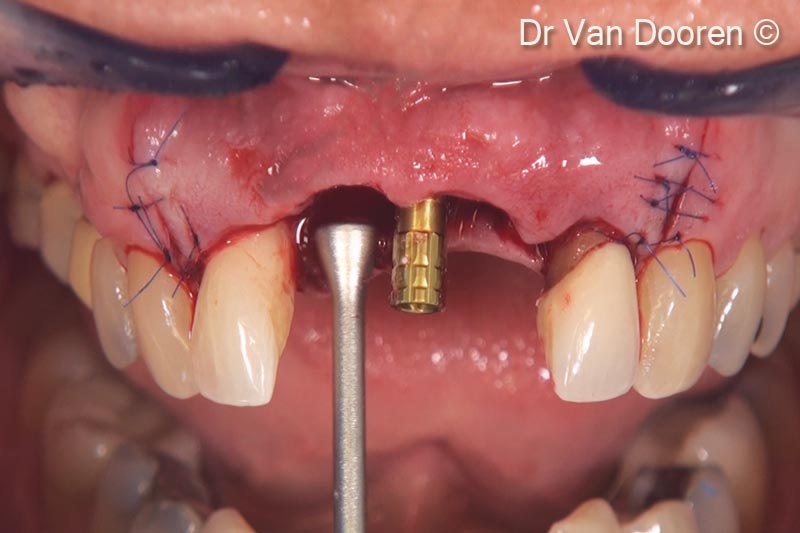

  • 13.  After placement of a provisional cylinder, OsteoBiol® GTO® was placed and packed, with the instruments and around the implant in order to support the soft tissue

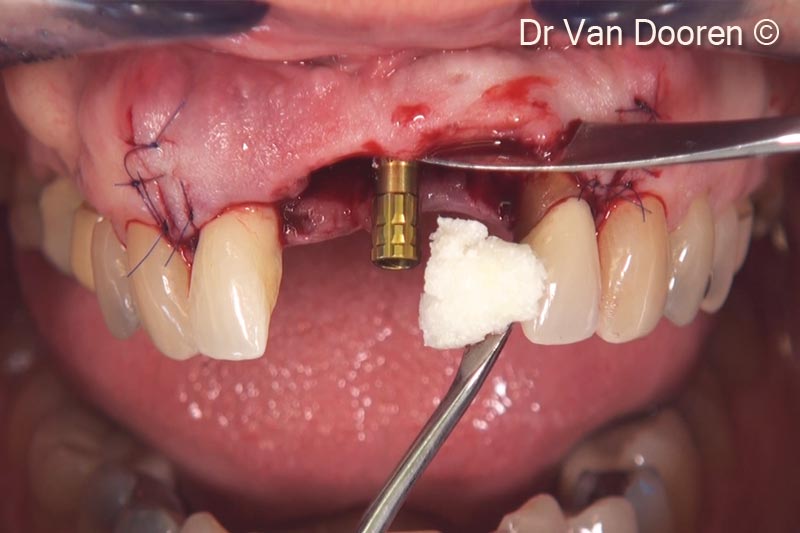

  • 14. After placement of a provisional cylinder, OsteoBiol® GTO® was placed and packed, with the instruments and around the implant in order to support the soft tissue
  • 15. After making the final preparation of tooth #22, a digital impression was taken with a scanpost (MIS)
  • 16. Occlusal view after 4 months. Please note the excellent soft tissue health and three-dimensional stability of the residual ridge after grafting

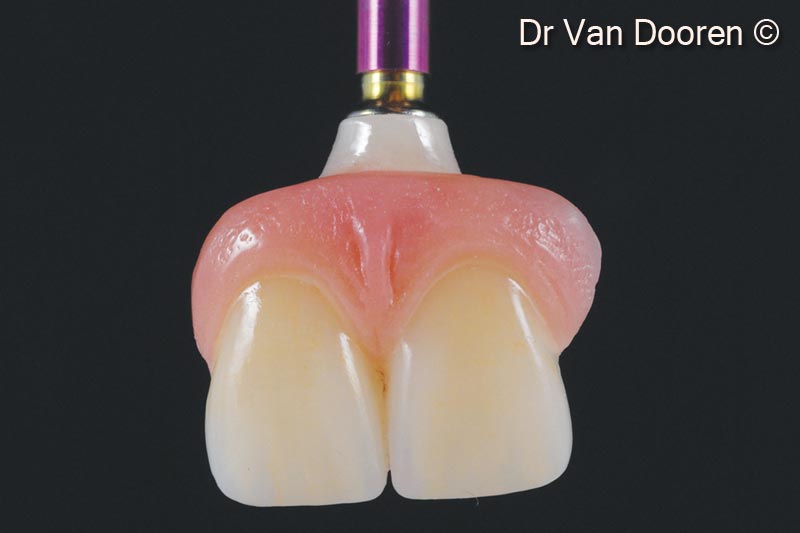

  • 17. A 2-unit screw retained zirconia bridge (#11 and #21) and a single crown (tooth #22) were milled and layered

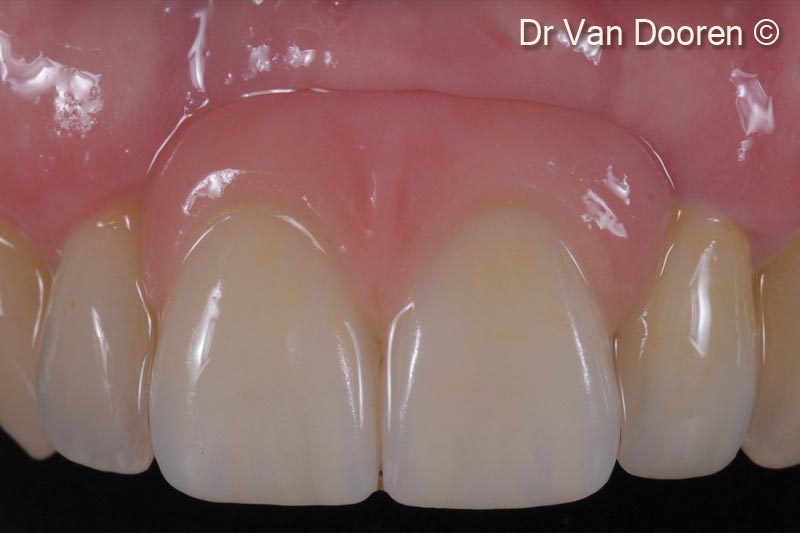

  • 18. Final clinical result. Note the integration and gingival health

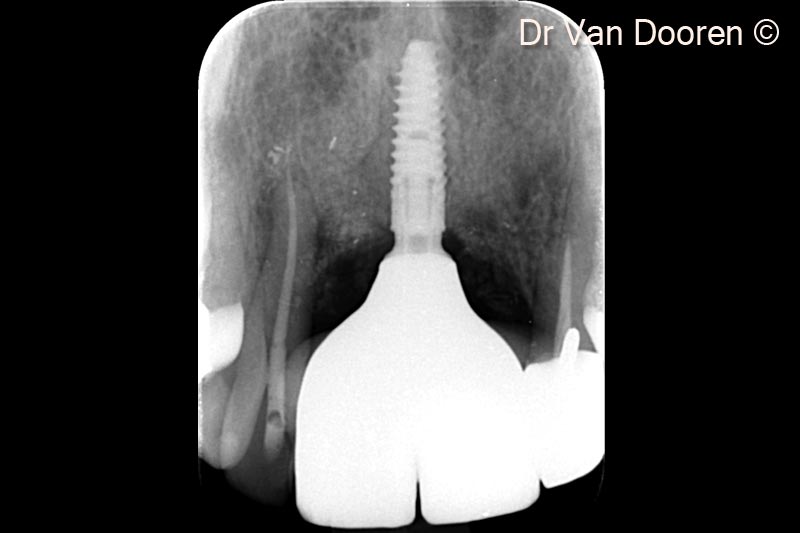

  • 19. Final X-Ray. Note stable marginal bone levels around the implant and the nice integration of the graft (OsteoBiol® GTO®) in the peri-implant space
  • Clinical indication: alveolar regeneration
  • Products : GTO®
  • Authors : Dr. Eric Van Dooren
  • Information about patient: Female, 46 years old
  • Credits : Documentation provided by Dr. Eric Van Dooren, Antwerp, Belgium
