Horizontal regeneration and implant placement after dental trauma in the aesthetic area

Dr. Michele Antonio Lopez
Initial situation

A female patient (33 years old) requires ridge augmentation in the upper jaw.

Used biomaterials
  • mp3®
  • Lamina®
  • Evolution

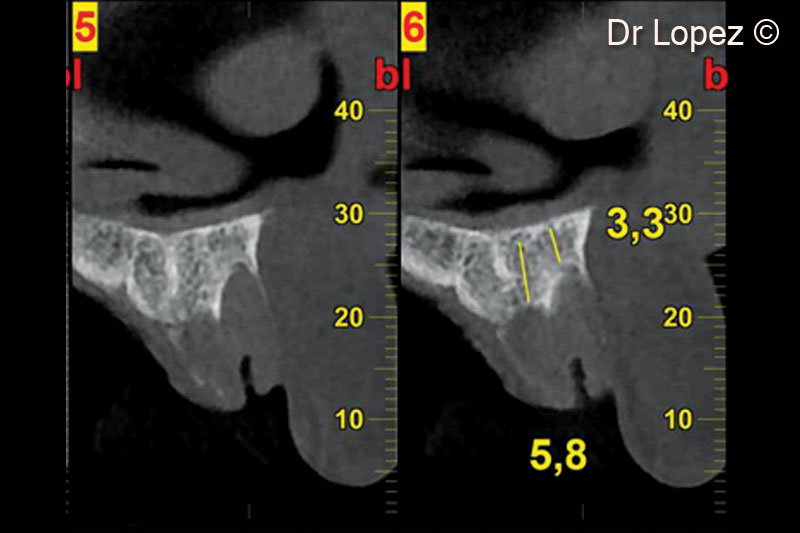

1. Pre-operative cone beam scan

1. Pre-operative cone beam scan

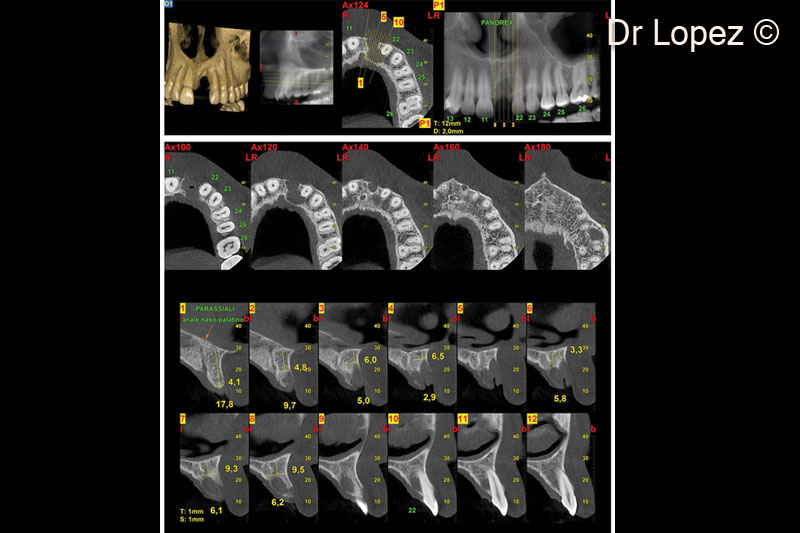

2. Pre-operative cone beam scan

2. Pre-operative cone beam scan

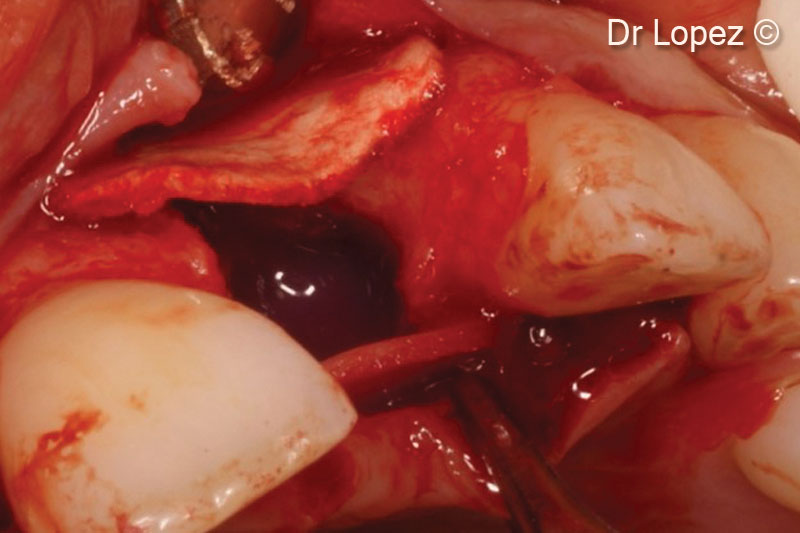

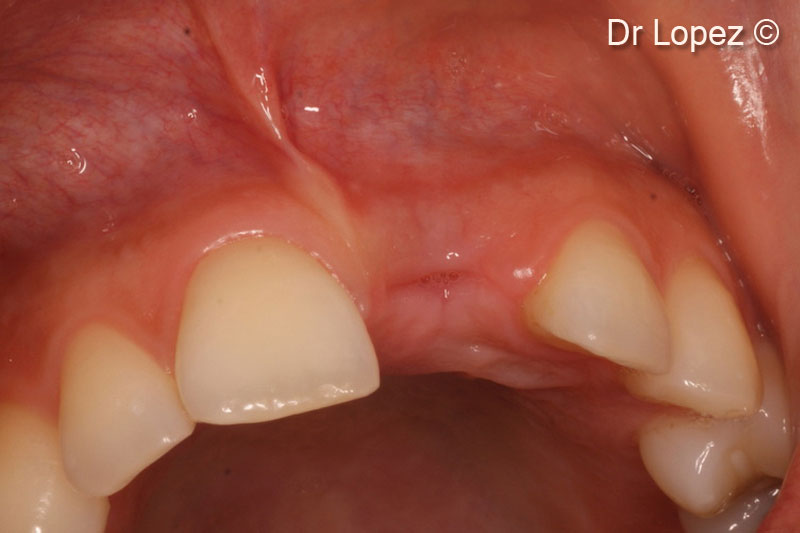

3. Post-traumatic bone defect

3. Post-traumatic bone defect

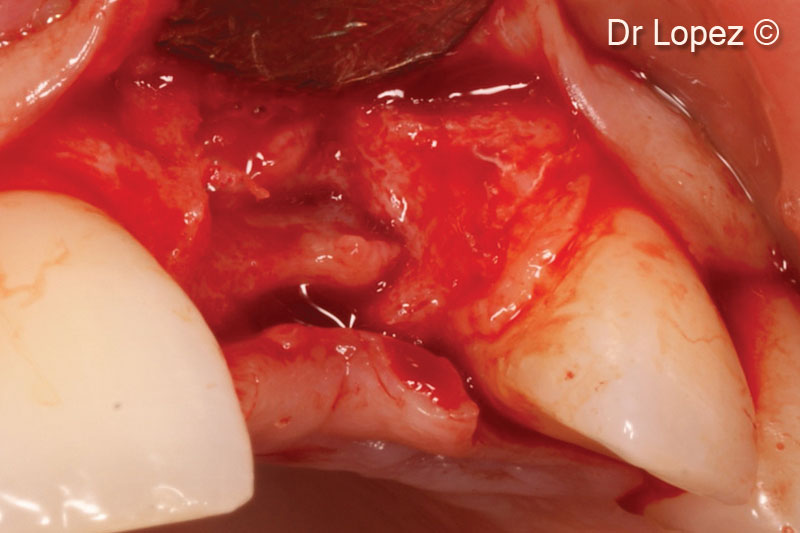

4. Flap opening

4. Flap opening

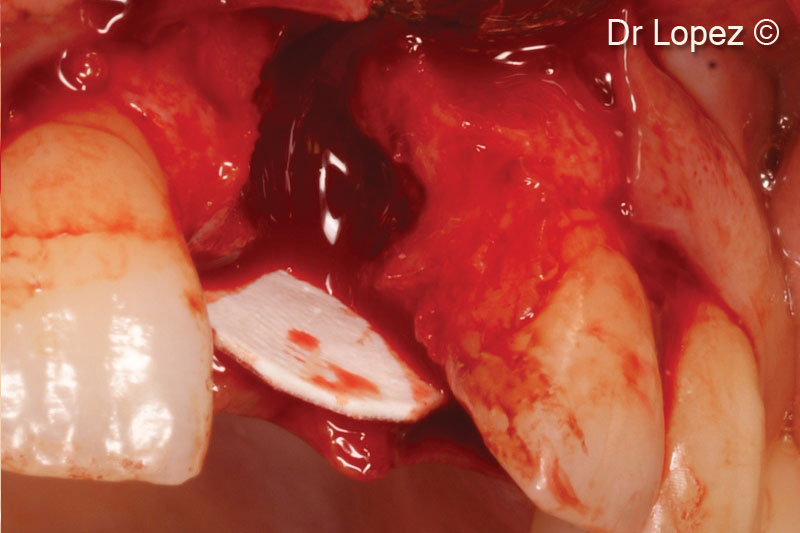

5. 1-mm thick OsteoBiol® Lamina® Soft positioned palatally

5. 1-mm thick OsteoBiol® Lamina® Soft positioned palatally

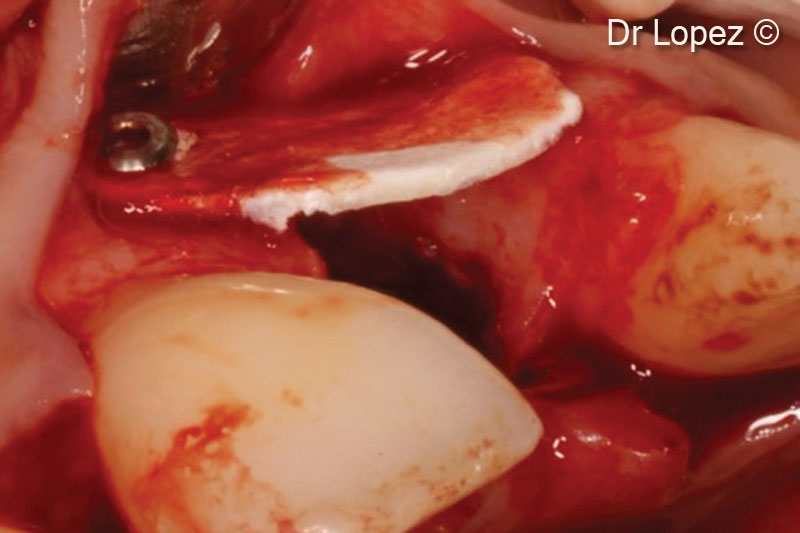

6. Fixation of the OsteoBiol® Lamina® Soft on the vestibular bone with titanium pins

6. Fixation of the OsteoBiol® Lamina® Soft on the vestibular bone with titanium pins

7. View of the defect grafted with OsteoBiol® Lamina® Soft

7. View of the defect grafted with OsteoBiol® Lamina® Soft

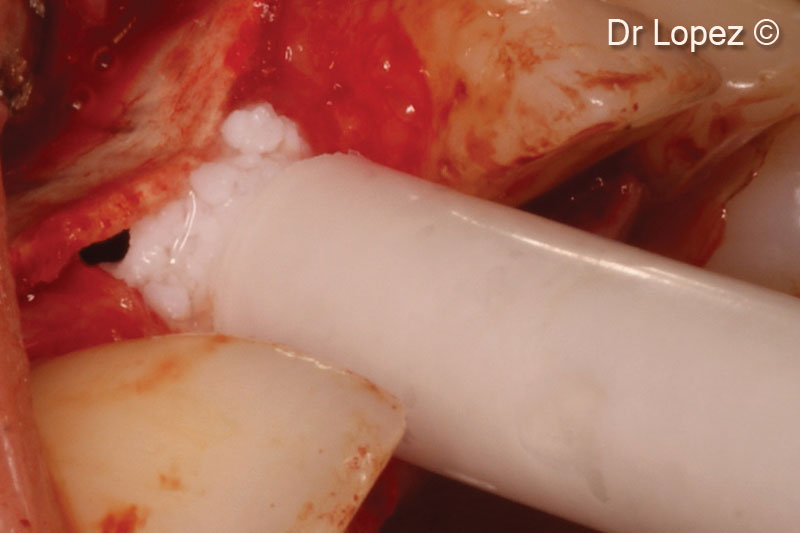

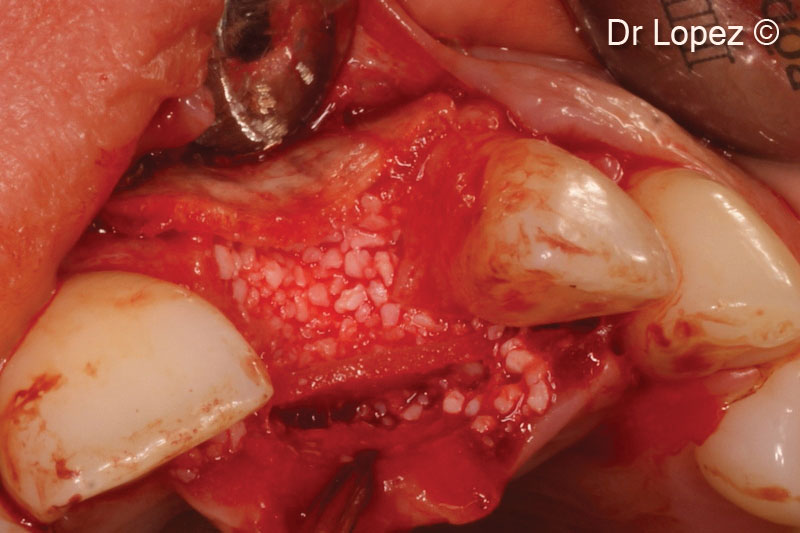

8. Grafting of OsteoBiol® mp3®

8. Grafting of OsteoBiol® mp3®

9. Defect completely filled

9. Defect completely filled

10. Covering of the grafted area with OsteoBiol® Evolution membrane

10. Covering of the grafted area with OsteoBiol® Evolution membrane

11. Final view of the grafted area

11. Final view of the grafted area

12. Flap closure

12. Flap closure

13. Post-operative cone beam scan at implant placement (8 months after surgery)

13. Post-operative cone beam scan at implant placement (8 months after surgery)

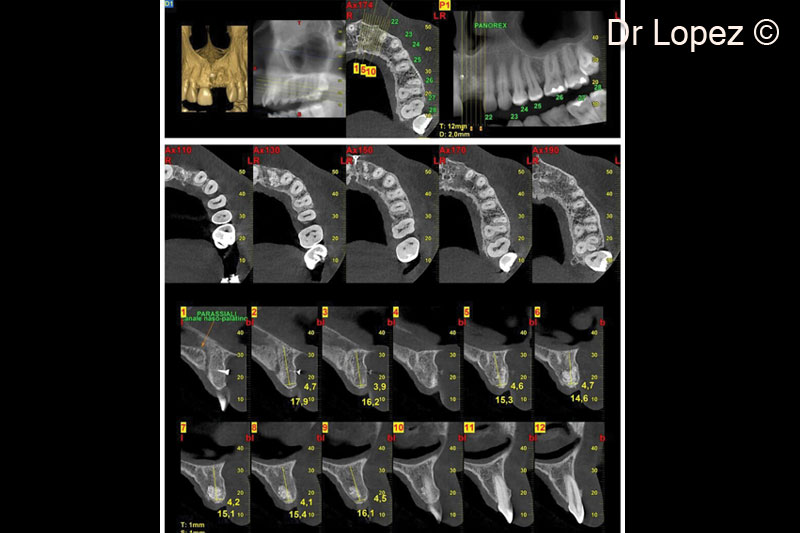

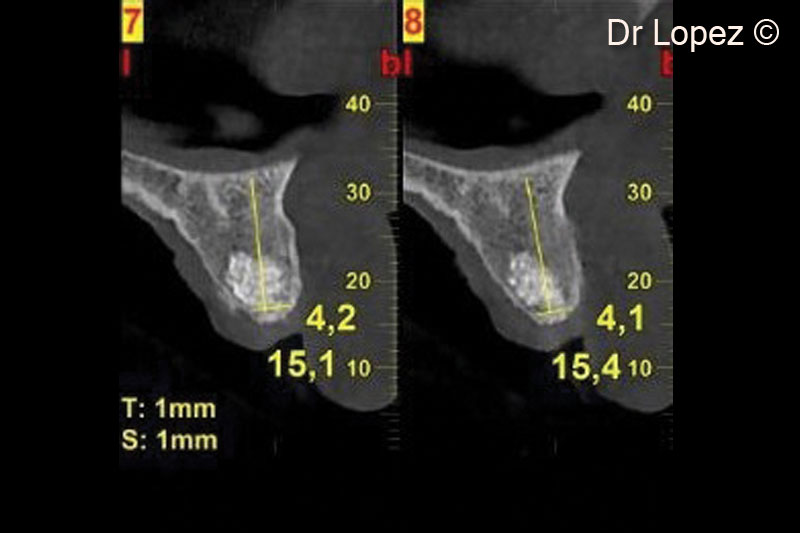

14. Post-operative cone beam scan at implant placement (8 months after surgery)

14. Post-operative cone beam scan at implant placement (8 months after surgery)

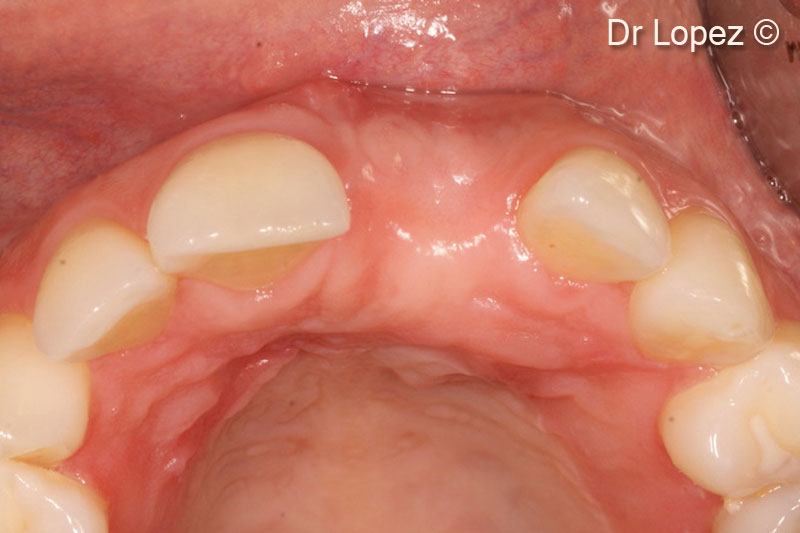

15. Pre-operative view of the augmented area

15. Pre-operative view of the augmented area

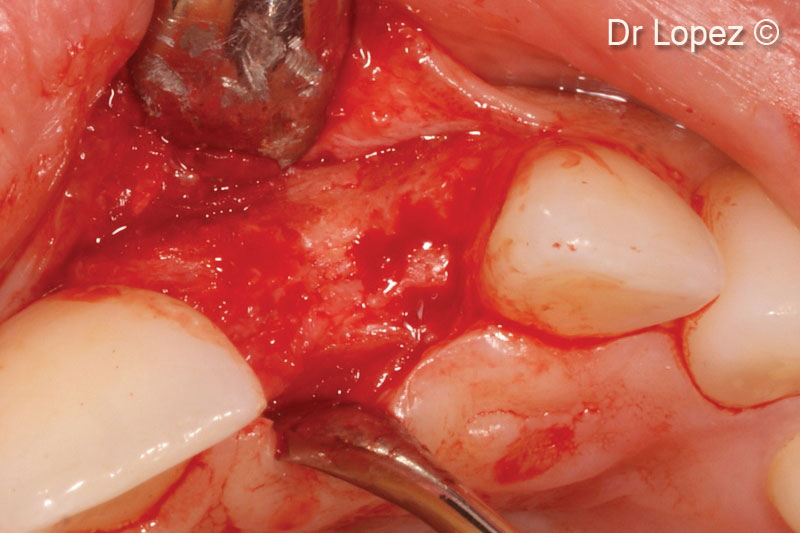

16. Intraoperative view

16. Intraoperative view

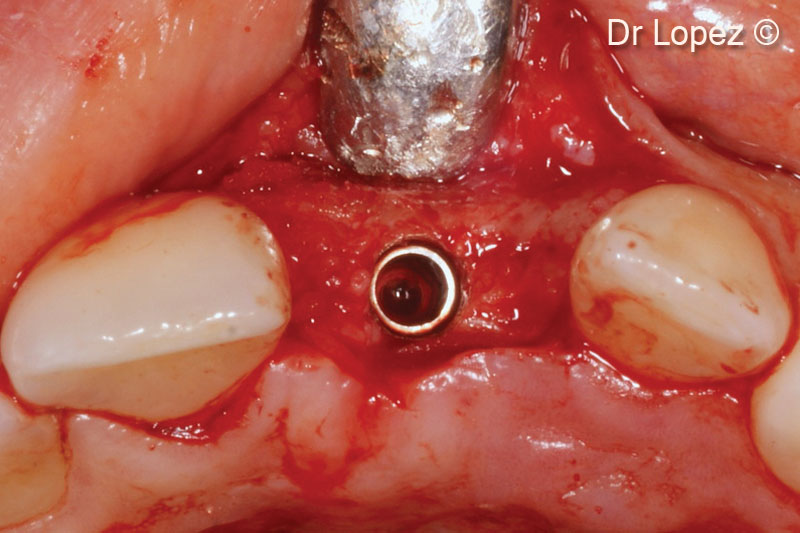

17. Positioning of a 3.5x10-mm implant

17. Positioning of a 3.5x10-mm implant

18. Tissue conditioning around implants

18. Tissue conditioning around implants

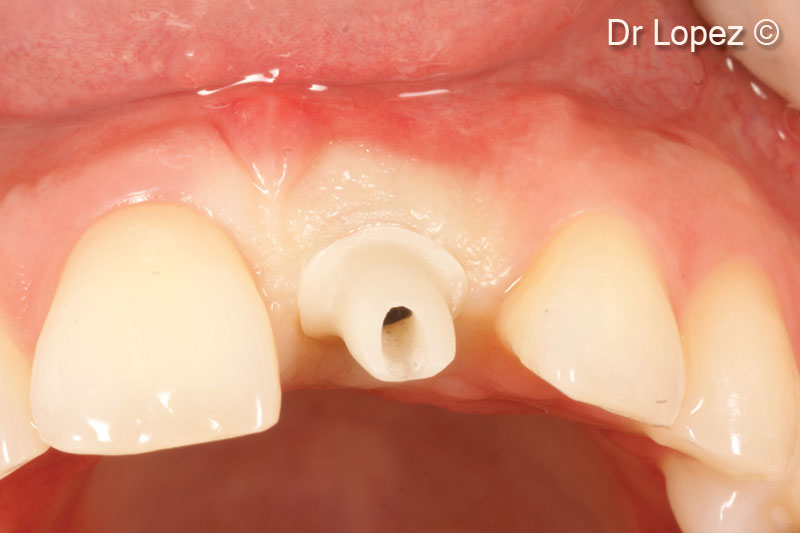

19. Ti-base abutment

19. Ti-base abutment

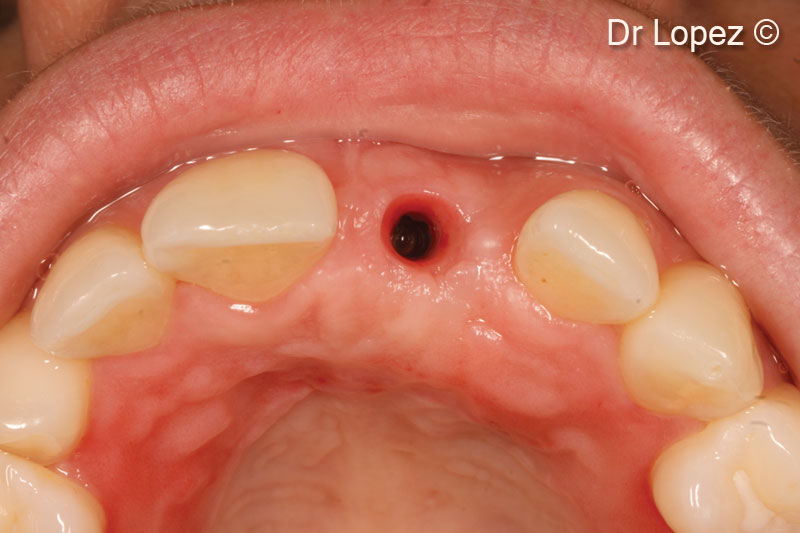

20. Control at 6 months

20. Control at 6 months

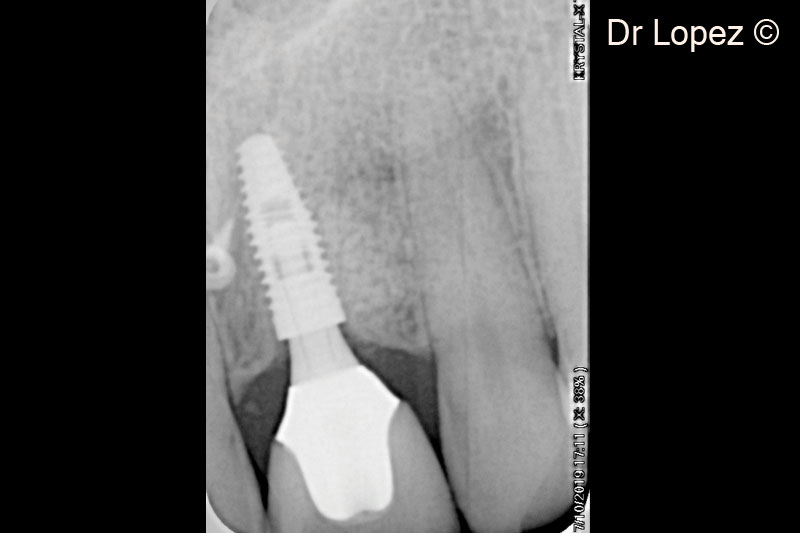

21. X-ray control at 3 years

21. X-ray control at 3 years
