Subcrestal minimal invasive sinus augmentation using the Putty

  • cover image

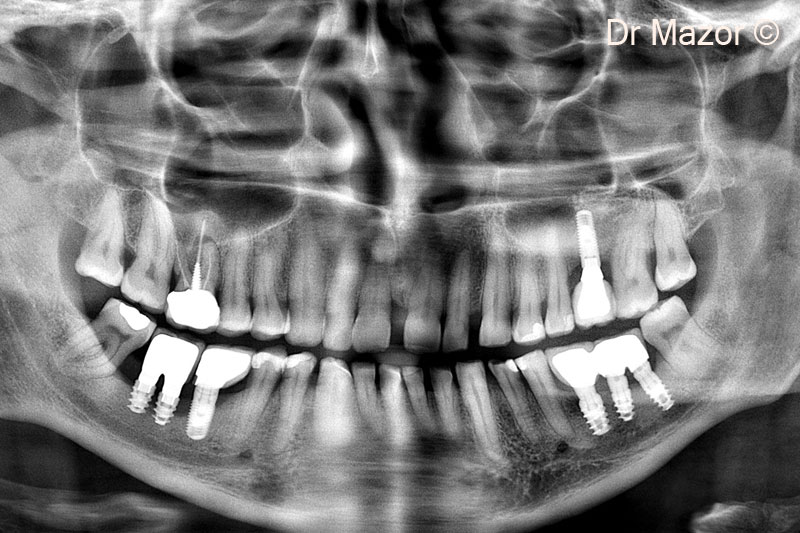

  • 1. Pre-operative panoramic view

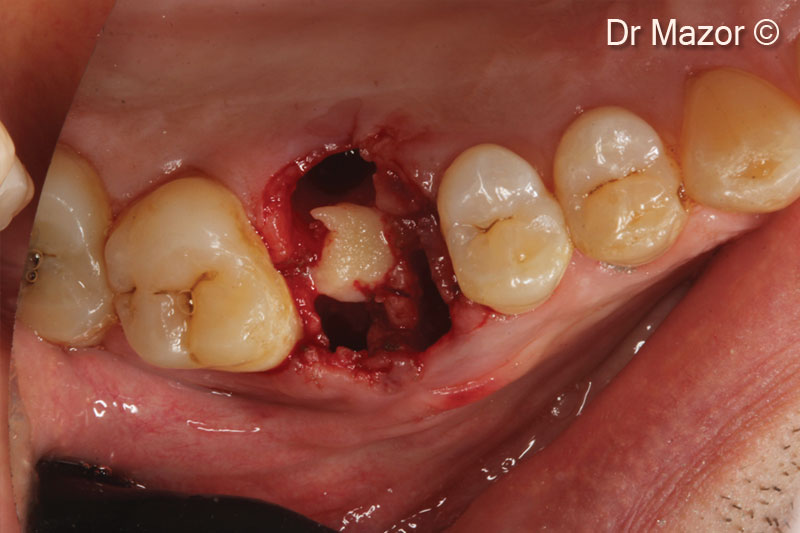

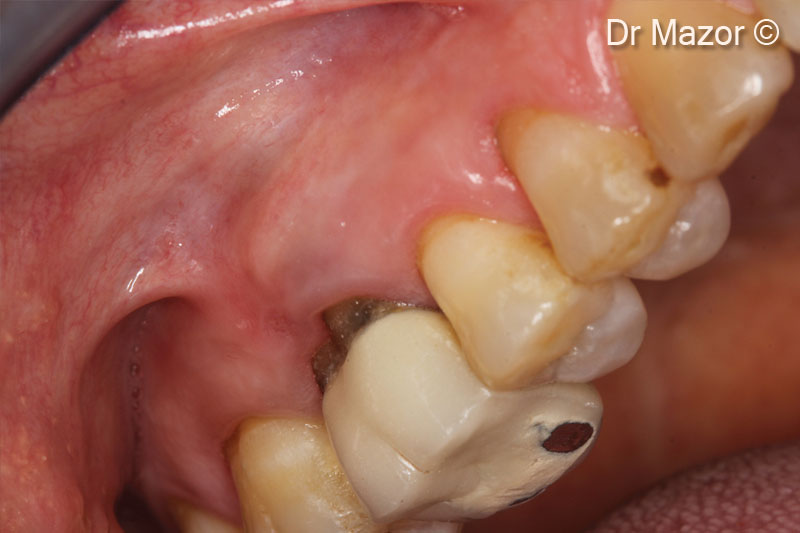

  • 2. Clinical view of tooth #16

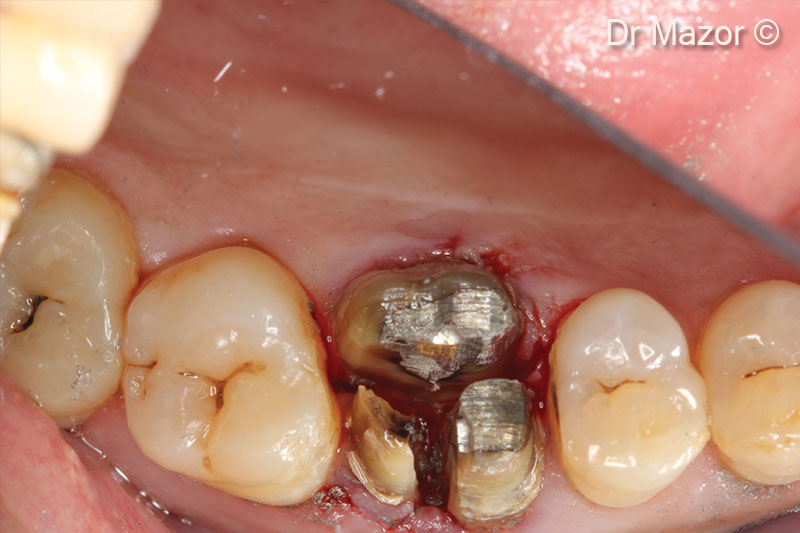

  • 3. Root separation ensuring atraumatic extraction

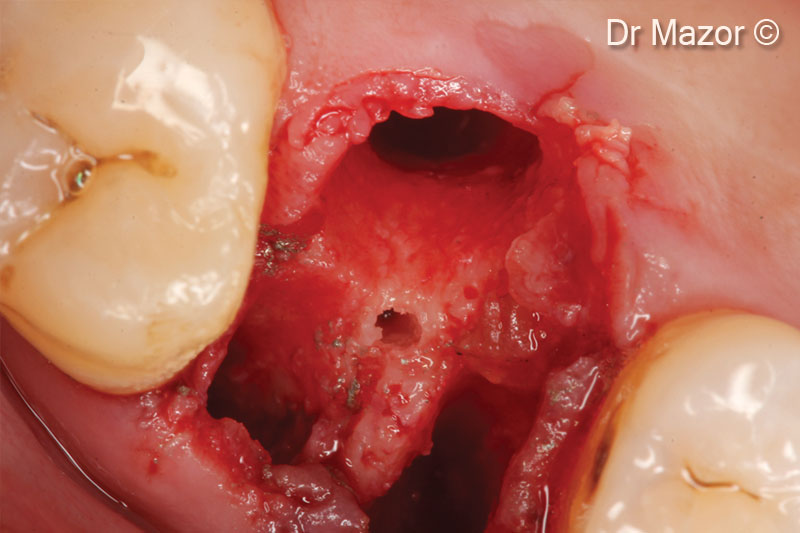

  • 4. Occlusal view of the extraction socket

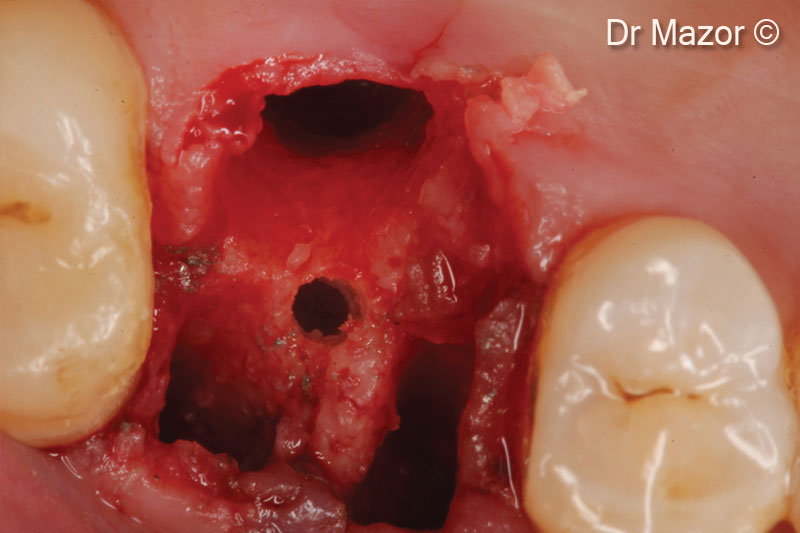

  • 5. 1.6mm pointed drill marking osteotomy site in the furcation area
  • 6. Occlusal view after site is marked

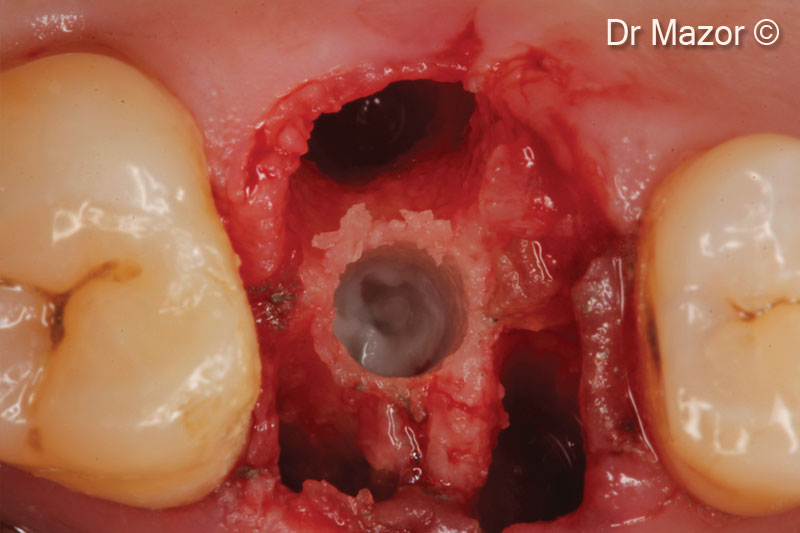

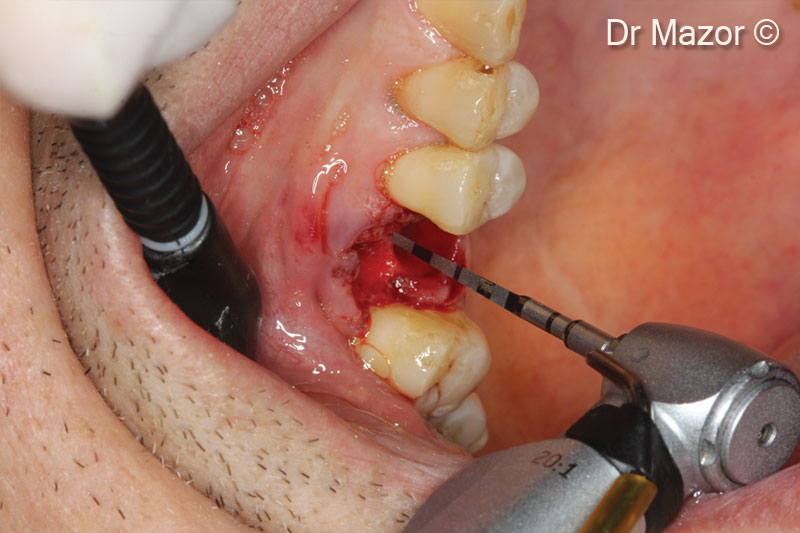

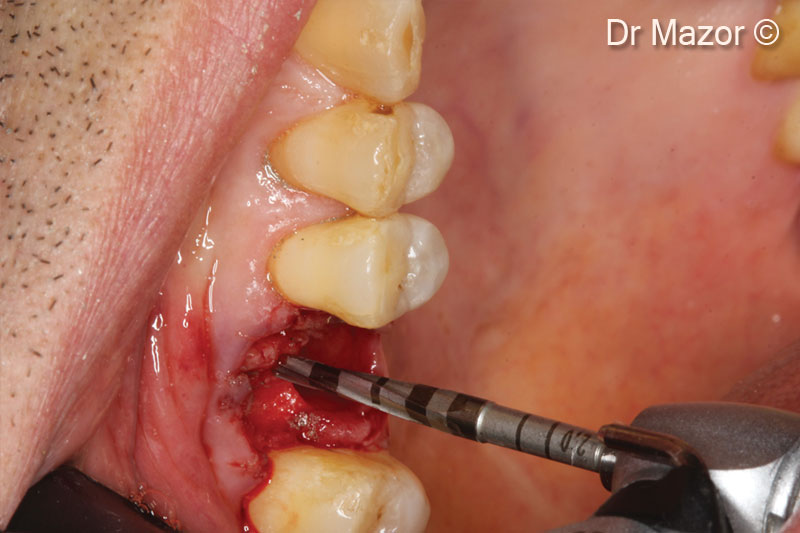

  • 7.  2mm densifying drill reaching sinus floor

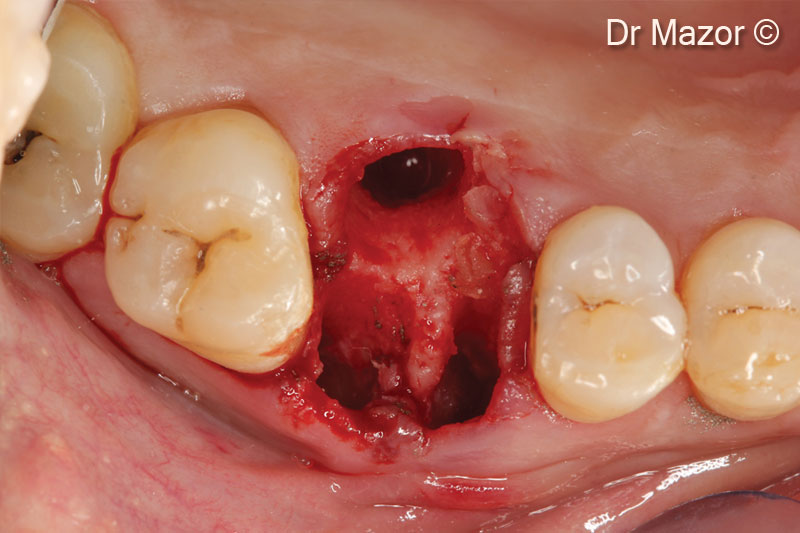

  • 8. Occlusal view

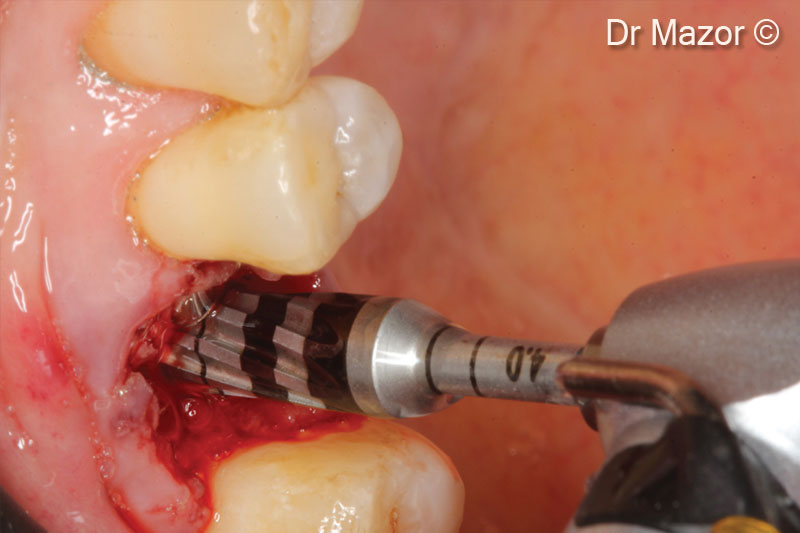

  • 9. Osteotomy expansion with subcrestal elevation using 3mm Densah drill
  • 10. Putty insertion into the osteotomy prepared site
  • 11. Elevating the Putty using 4mm diameter Versah drill

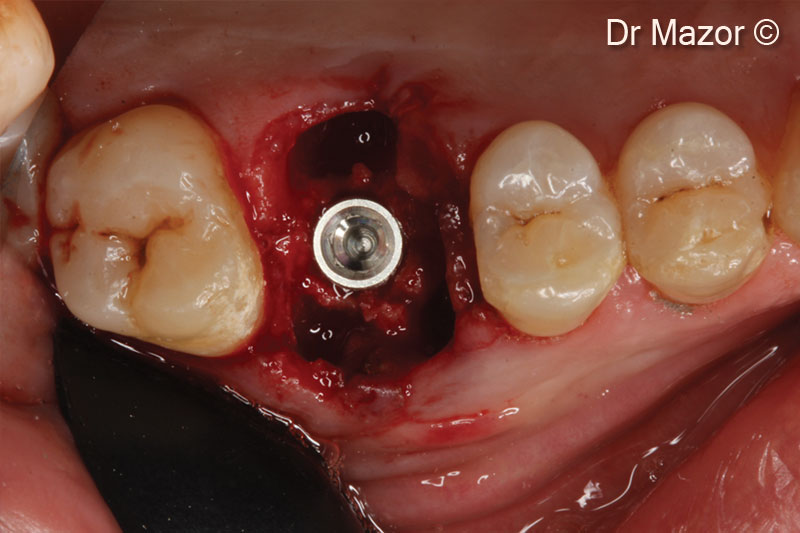

  • 12. Implant insertion

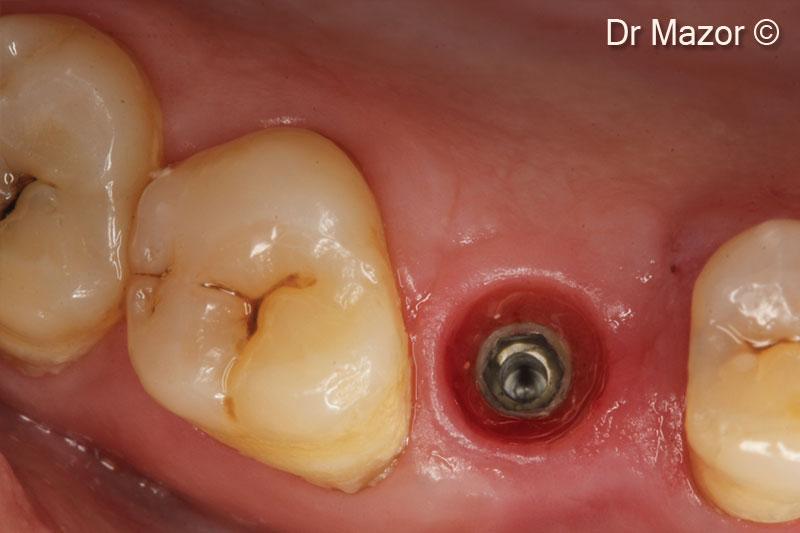

  • 13. Soft tissue healing around the healing abutment

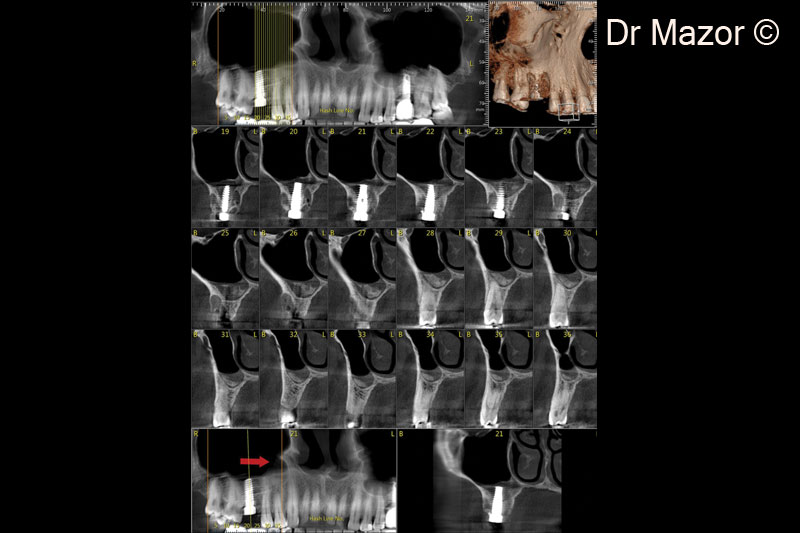

  • 14. Post-op CBCT verifying bone consolidation around the implant

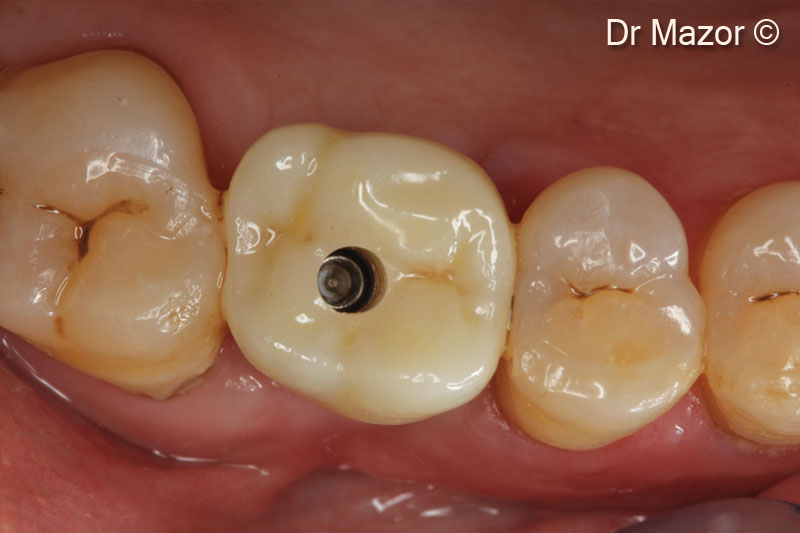

  • 15. Screw retained zirconia crown in place

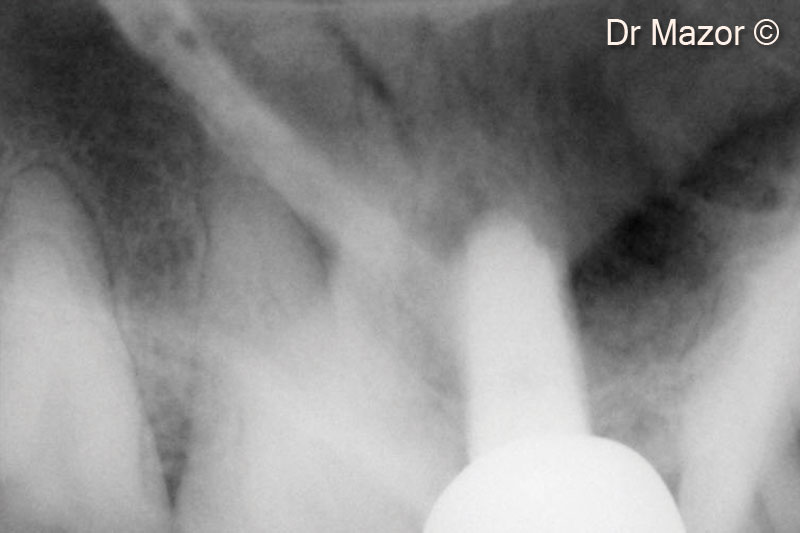

  • 16. 2 years post-op periapical X-ray
  • Clinical indication: crestal access sinus lift
  • Products : Putty
  • Authors : Dr. Ziv Mazor
  • Information about patient: Male, 49 years old
  • Credits : Documentation provided by Dr. Ziv Mazor, Ra’anana, Israel
