Transcrestal Sinus Floor Elevation

  • cover image

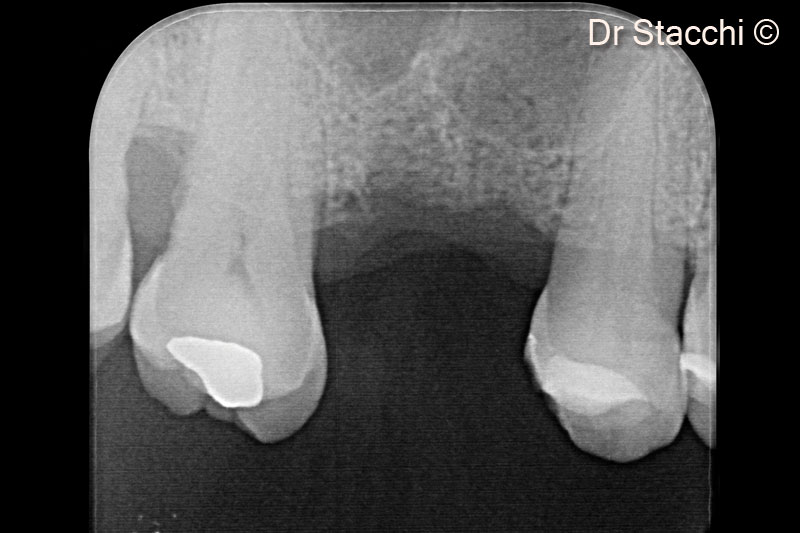

  • 1. Pre-operative X-ray, showing 2.5 mm residual bone height and the presence of an Underwood septum
  • 2. After raising a minimally invasive full thickness flap, the crestal access was performed mesially to the septum

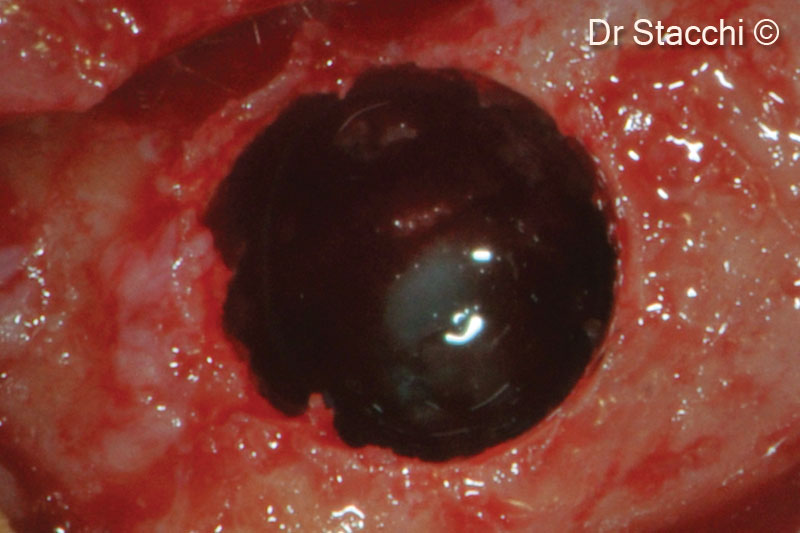

  • 3. Maxillary sinus floor was interrupted, showing intact Schneiderian membrane

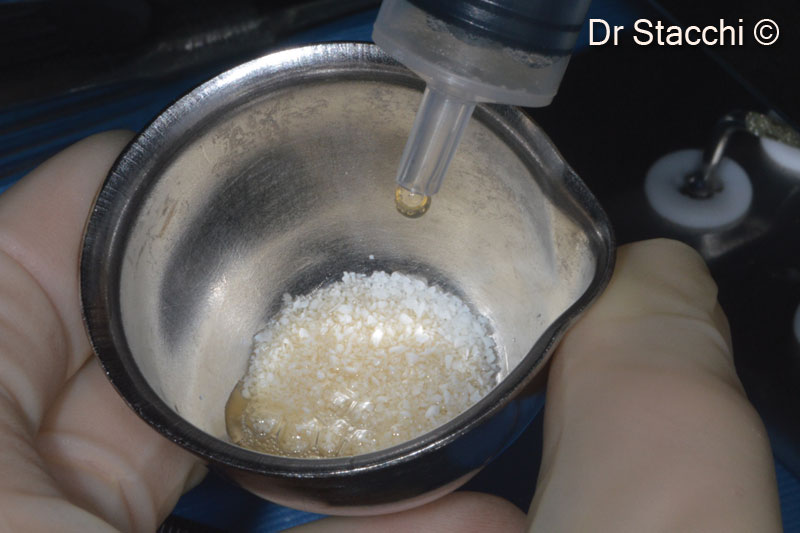

  • 4. One gram of OsteoBiol<sup>®</sup> Gen-Os<sup>®</sup> was mixed with autologous i-PRF

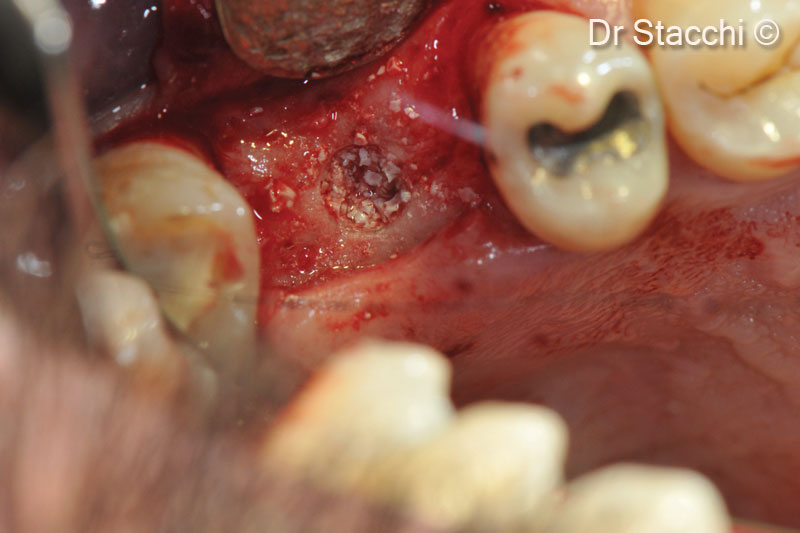

  • 5. Sinus was grafted by condensing gradual increments of xenogeneic granules with osteotomes, until a minimum height of 10 mm was obtained (comprising the residual bone crest)

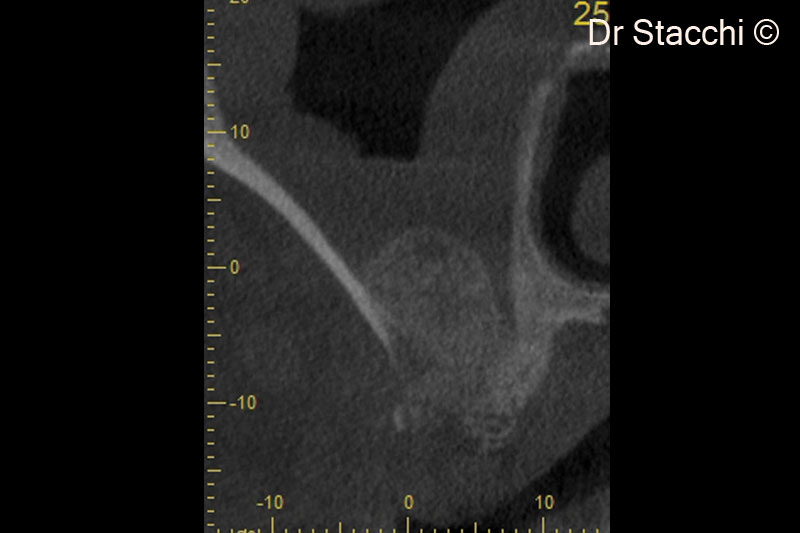

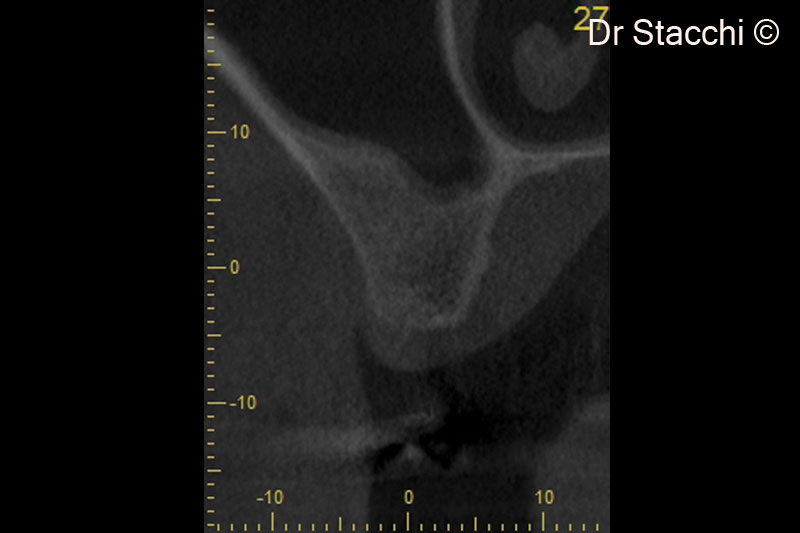

  • 6. CBCT scan taken one week after surgery shows good contact of the grafting material with lateral and medial sinus walls. Schneiderian membrane is hypertrophic due to the surgical trauma

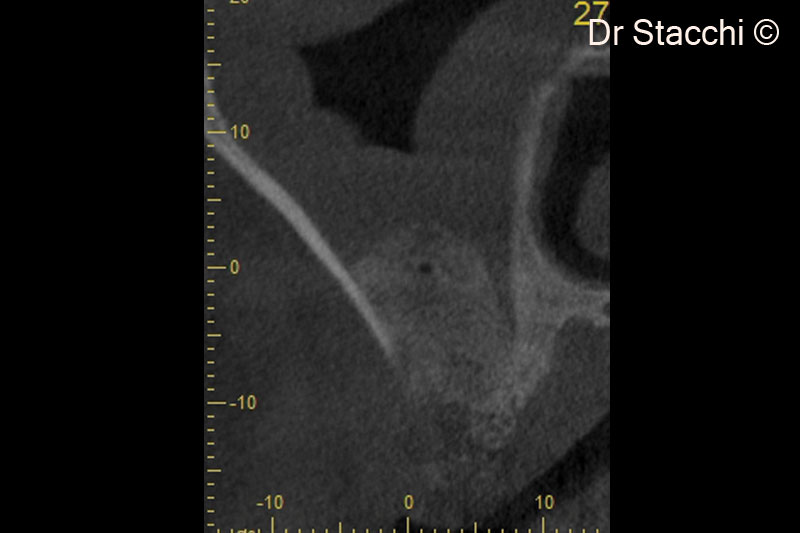

  • 7. CBCT scan taken one week after surgery shows good contact of the grafting material with lateral and medial sinus walls. Schneiderian membrane is hypertrophic due to the surgical trauma
  • 8. CBCT scan taken one week after surgery shows good contact of the grafting material with lateral and medial sinus walls. Schneiderian membrane is hypertrophic due to the surgical trauma

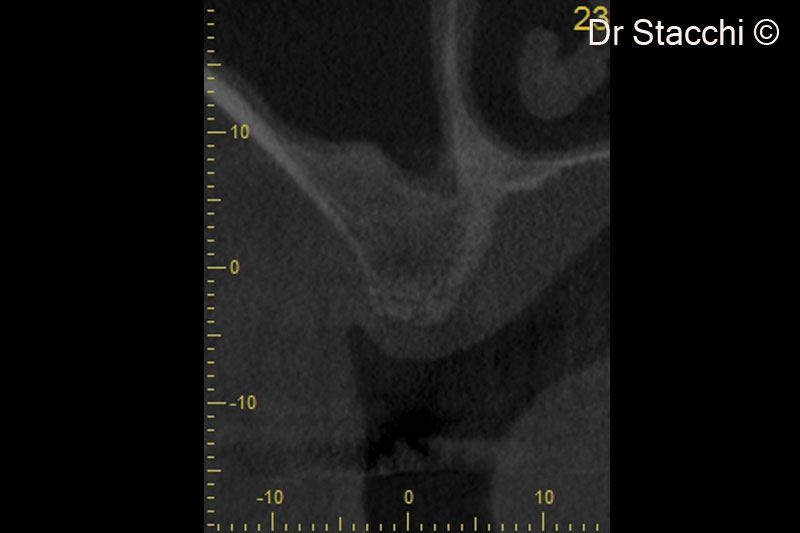

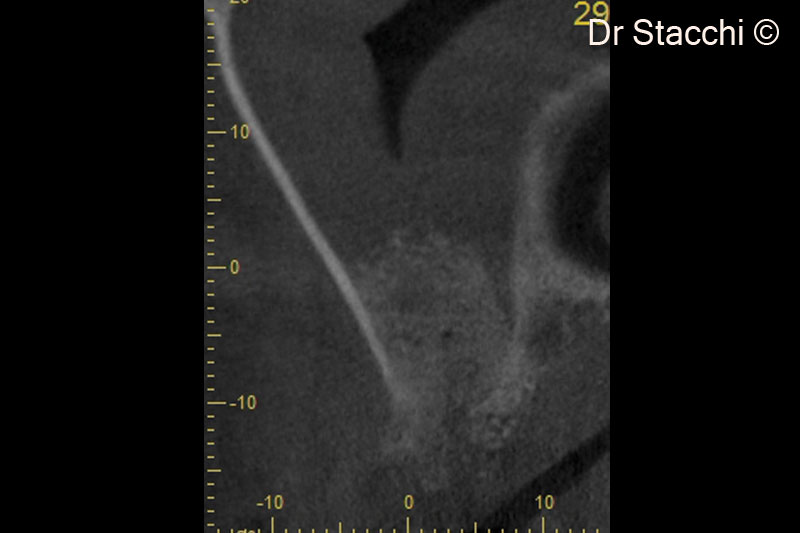

  • 9. CBCT scan taken six months after surgery. Schneiderian membrane appears healthy

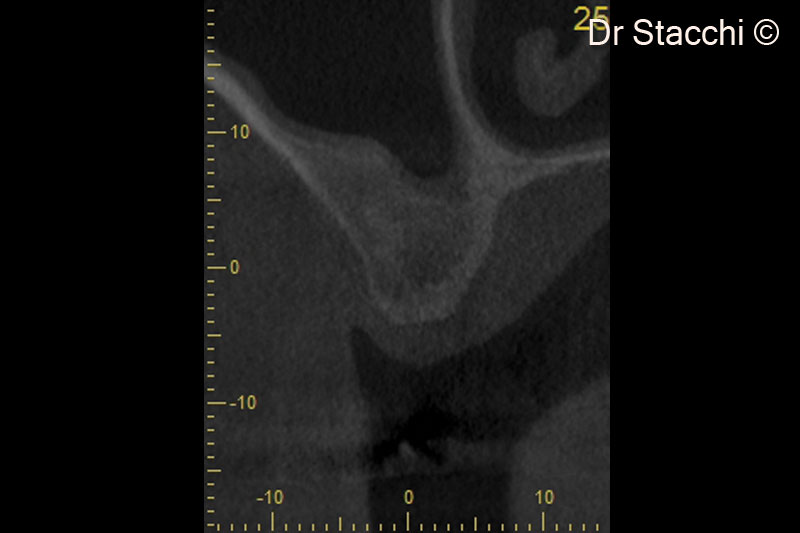

  • 10. CBCT scan taken six months after surgery. Schneiderian membrane appears healthy
  • 11. CBCT scan taken six months after surgery. Schneiderian membrane appears healthy

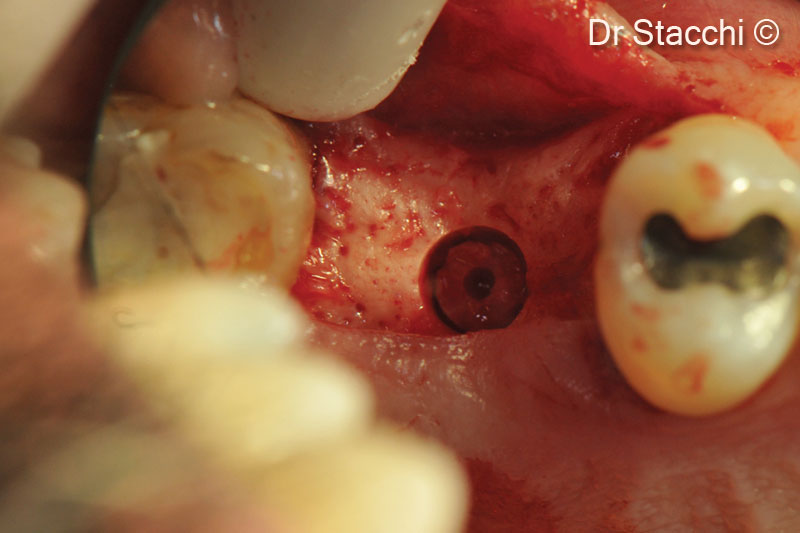

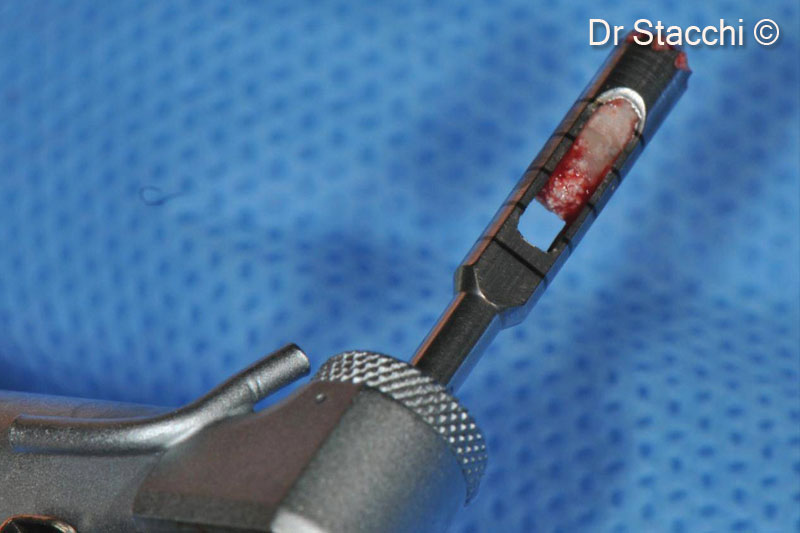

  • 12. Bone-core biopsy of the grafted area was harvested by using 3mm diameter trephine drill
  • 13. A dental implant (4.0x10mm) was inserted in the biopsy site
  • 14. A dental implant (4.0x10mm) was inserted in the biopsy site
  • 15. Residual biomaterial particles appeared surrounded and joined together by newly-formed bone (magnification 200×). Toluidine blue and pironine G stain (courtesy Prof. Tonino Traini). Histomorphometric analysis showed 25.4% newly-formed bone, 19.9% residual graft particles and 54.7% marrow spaces

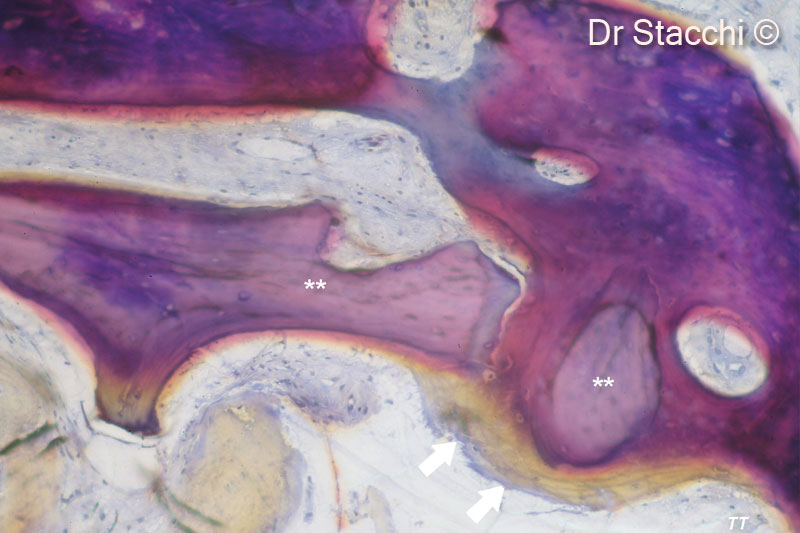

  • 16. Detail of Fig. 11: an active site of bone formation, as indicated by the presence of an osteoid rim, is represented at higher magnification (1000× - courtesy Prof. Tonino Traini)

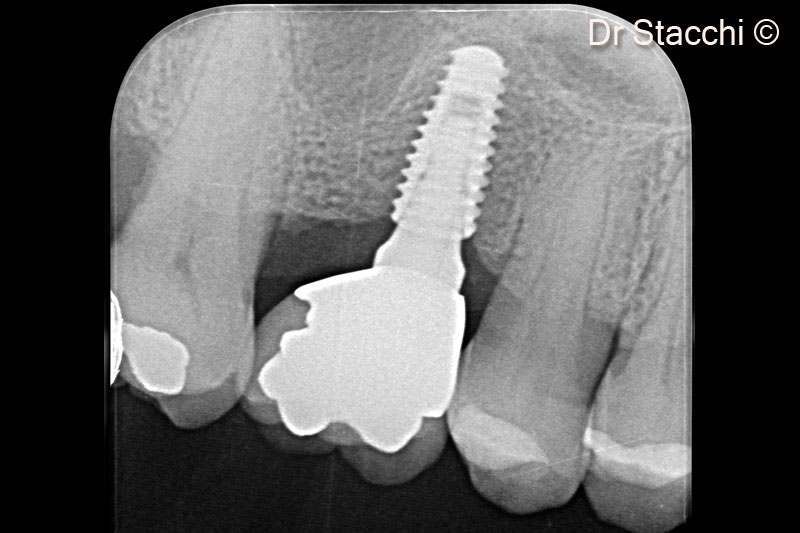

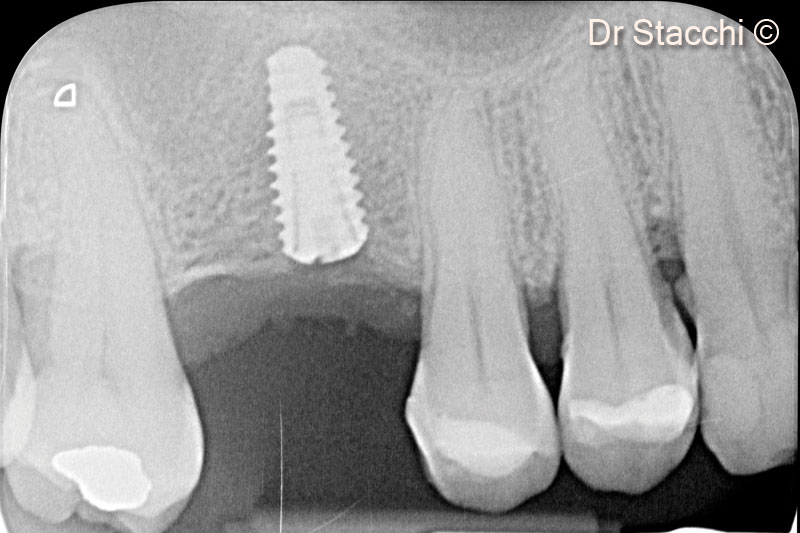

  • 17. Three-year post loading follow up X-ray, demonstrating marginal bone stability and maturation of the grafted area
  • Clinical indication: crestal access sinus lift
  • Products : Gen-Os®
  • Authors : Dr. Claudio Stacchi
  • Information about patient: Female, 66 years old
  • Credits : Documentation provided by Dr. Claudio Stacchi, Gorizia, Italy
