Socket rebuilding for immediate implant placement

  • cover image
  • 1. Initial situation: extended combined perio-endo lesion 11, buccal wall missing

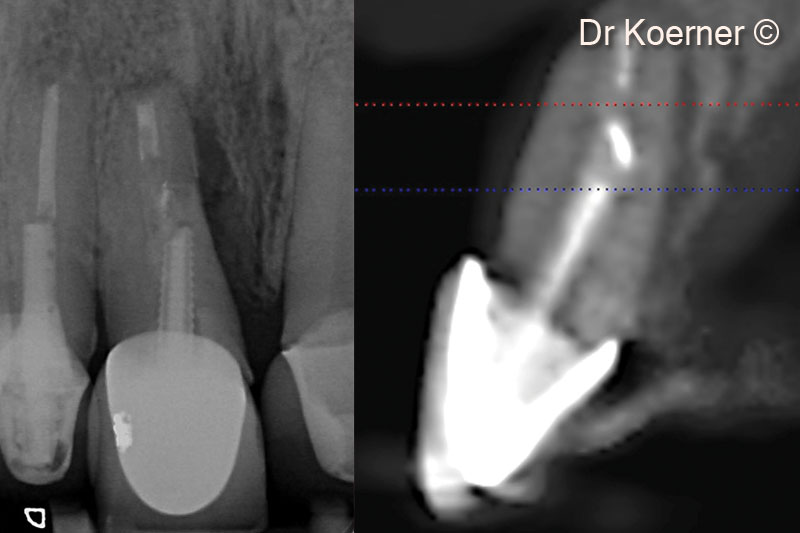

  • 2. Initial x-ray examination 11: missing buccal wall plus vertical defect to the apex

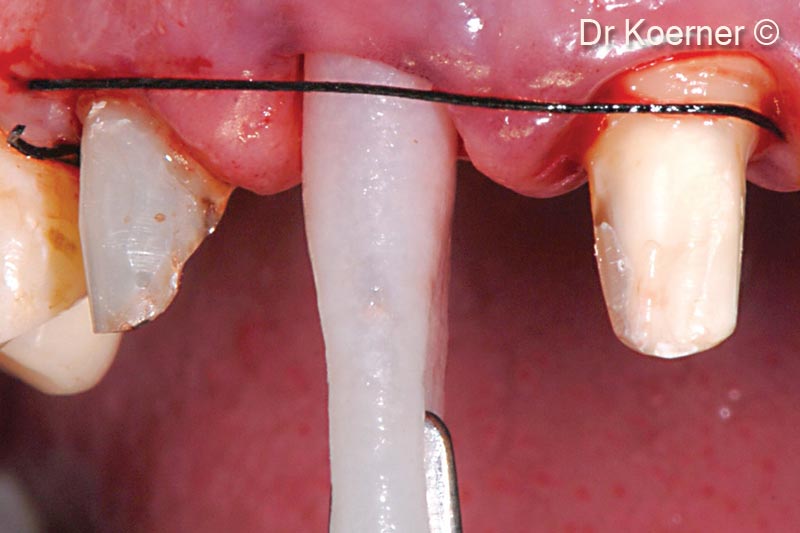

  • 3. Extraction of the multi-fractured tooth 11
  • 4. Extraction of the multi-fractured tooth 11

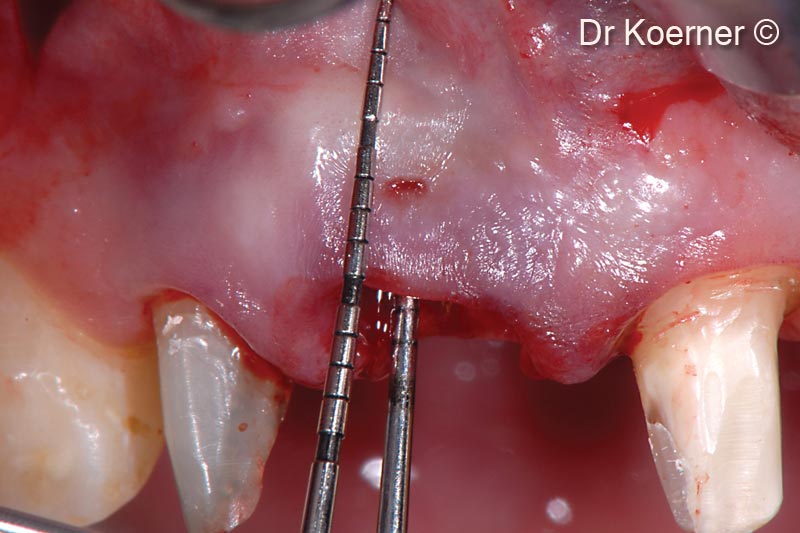

  • 5. Periodontal probes to demonstrate the extension of the missing buccal bony wall

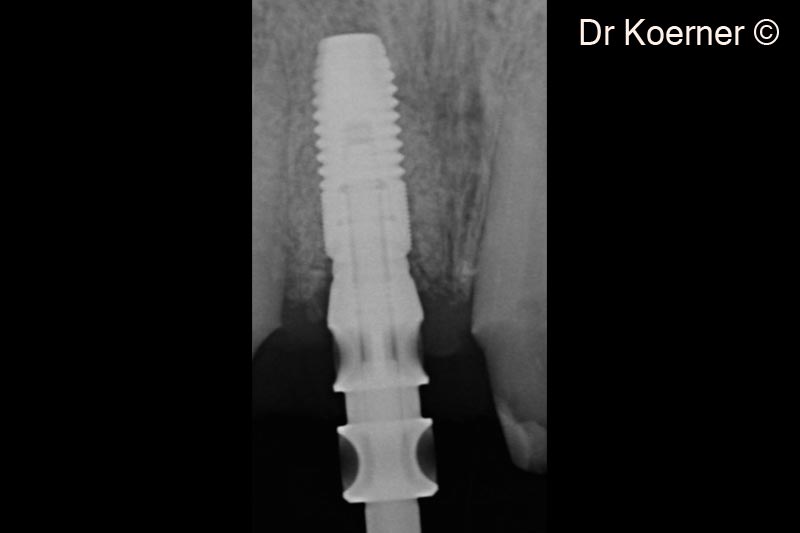

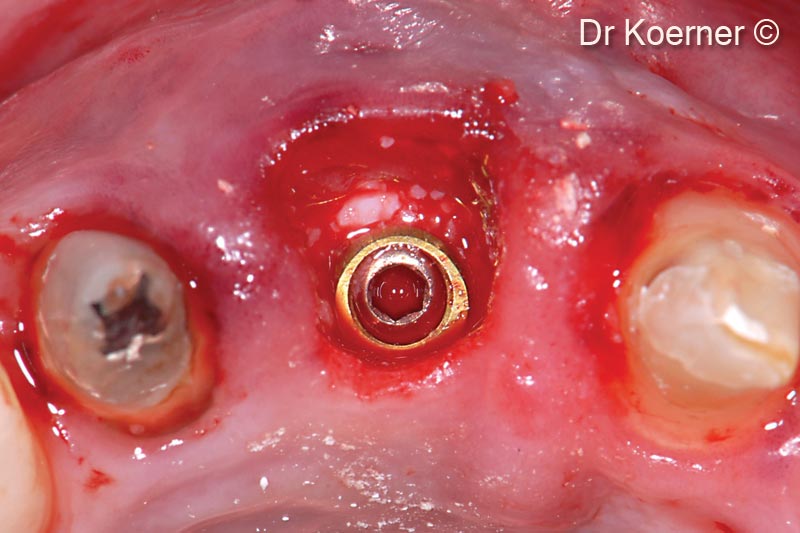

  • 6. Placement of 4,2mm ASTRA Profile next to the palatal wall, see the buccal deficiency

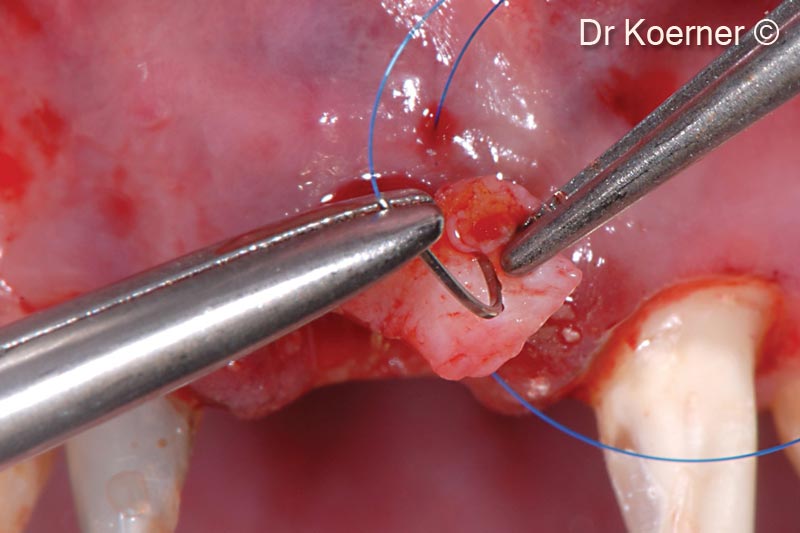

  • 7. Inserting a defect related, folded soft bone Lamina
  • 8. Bone Lamina before insertion with indirect tunnel opening to help unfolding the inserted Lamina on top of the defect borders

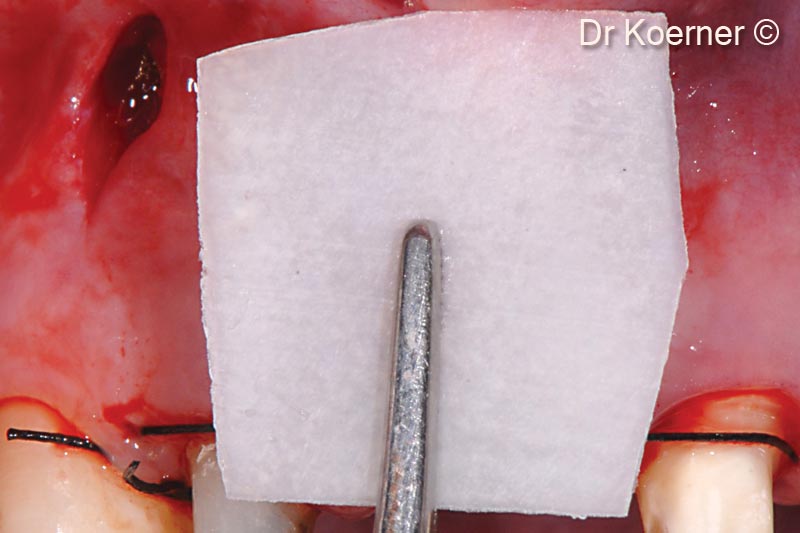

  • 9. Cutting the soft bone Lamina according to a paper template matching the deficient bony wall

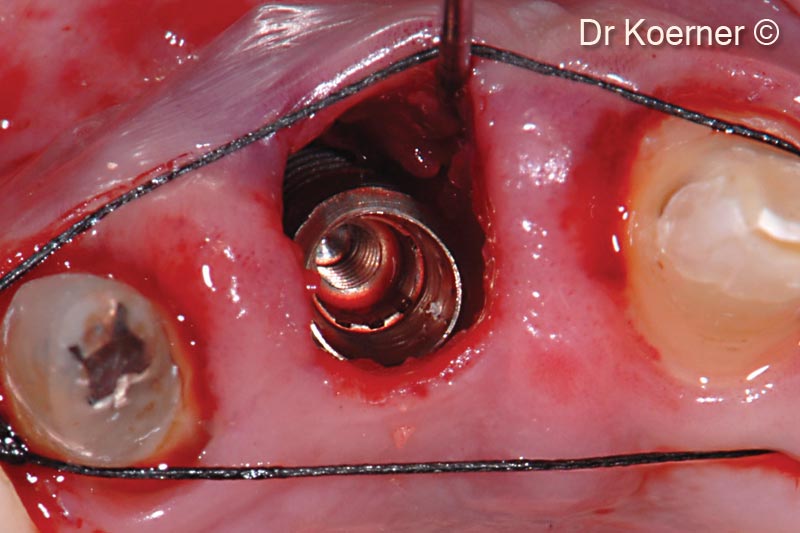

  • 10. ASTRA Profile with cover screw to allow bone grafting of mp3<sup>®</sup> between implant and replaced buccal wall (bone Lamina)
  • 11. Additional grafting of a thin autogenous connective tissue
  • 12. Replacing the cover screw by an adequate healing abutment to support the new bony wall and the connective tissue
  • 13. X-ray after 4 months post-op at impression taking

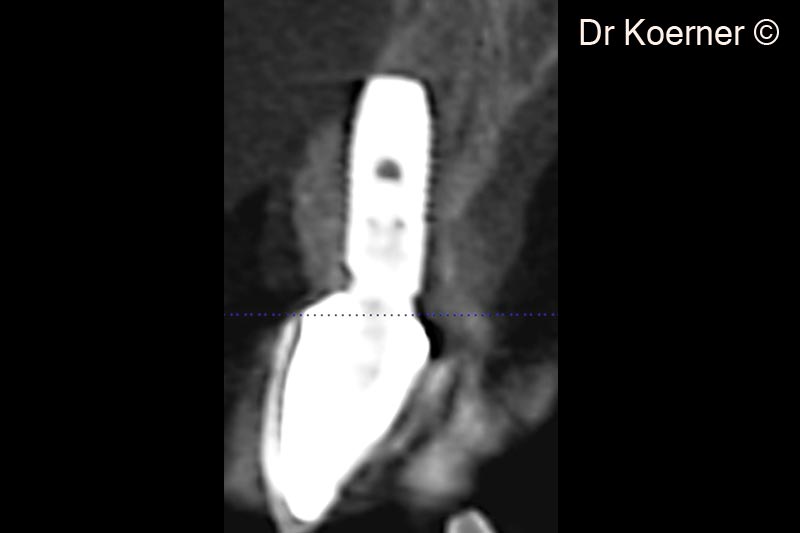

  • 14. CBTC 6 months after prostho-delivering to demonstrate the new bony buccal wall
  • 15. 1 week post-op with provisional in place to condition the soft tissue profile
  • 16. Final situation 6 months after ceramic restoration of the upper front #13-#23 (full ceramic: #12, implant #11, #21 ceramic veneers: #13, #22, #23)
  • Clinical indication: horizontal augmentation
  • Products : Lamina, mp3®
  • Authors : Dr. Gerd Körner
  • Information about patient: Female, 45 years old
  • Credits : Documentation provided by Dr. Gerd Körner, Bielefeld, Germany
