Treatment of an atrophic upper jaw with the All-on-4 concept

Prof. Aleksei Reshetnikov
Initial situation

A male patients (48 years old) reposts esthetic dissatisfaction

Used biomaterials
  • Evolution
  • mp3®
Patient complaints:  mobility and lack of teeth in the upper jaw and aesthetic dissatisfaction

Patient complaints: mobility and lack of teeth in the upper jaw and aesthetic dissatisfaction

Gingival recession and decreased height of interdental papillae

Gingival recession and decreased height of interdental papillae

Gingival recession and decreased height of interdental papillae

Gingival recession and decreased height of interdental papillae

Panoramic radiograph. The upper anterior teeth lack the periodontal ligament and bone tissue along the entire length of the tooth roots

Panoramic radiograph. The upper anterior teeth lack the periodontal ligament and bone tissue along the entire length of the tooth roots

After infiltration anesthesia, all teeth  in the upper jaw removed, then vestibular incision made and the mucoperiosteal flap skeletonized. Implants installed using the “All-on-4” protocol

After infiltration anesthesia, all teeth in the upper jaw removed, then vestibular incision made and the mucoperiosteal flap skeletonized. Implants installed using the “All-on-4” protocol

After infiltration anesthesia, all teeth  in the upper jaw removed, then vestibular incision made and the mucoperiosteal flap skeletonized. Implants installed using the “All-on-4” protocol

After infiltration anesthesia, all teeth in the upper jaw removed, then vestibular incision made and the mucoperiosteal flap skeletonized. Implants installed using the “All-on-4” protocol

After implants' installation, the defects of the upper jaw and the sockets of the extracted teeth filled with mp3®. The graft isolated from the soft tissues by the collagen membrane Evolution

After implants' installation, the defects of the upper jaw and the sockets of the extracted teeth filled with mp3®. The graft isolated from the soft tissues by the collagen membrane Evolution

Edges of the wound sutured

Edges of the wound sutured

Immediate temporary restoration of the upper jaw

Immediate temporary restoration of the upper jaw

Patient’s smile with a temporary prosthesis installed immediately after surgery

Patient’s smile with a temporary prosthesis installed immediately after surgery

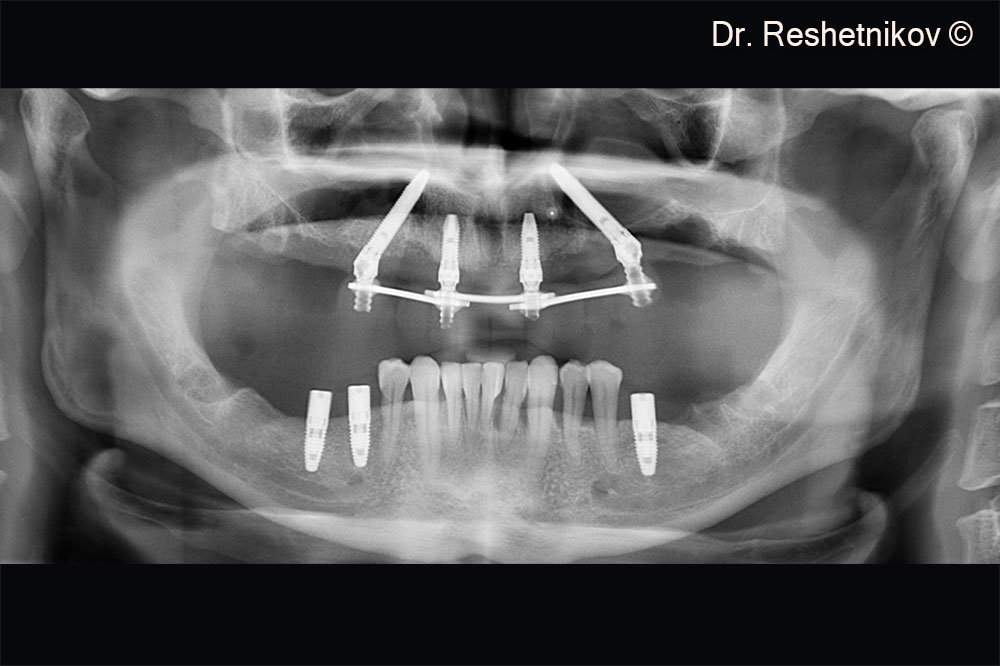

Panoramic radiograph on the day of surgery with a temporary reinforced plastic prosthesis installed

Panoramic radiograph on the day of surgery with a temporary reinforced plastic prosthesis installed

Check-up 6 months after implantation. Stable condition of soft tissues around installed abutments

Check-up 6 months after implantation. Stable condition of soft tissues around installed abutments

Permanent prosthesis fixed 8 months after the treatment started

Permanent prosthesis fixed 8 months after the treatment started

Patient's smile after permanent prosthetics

Patient's smile after permanent prosthetics

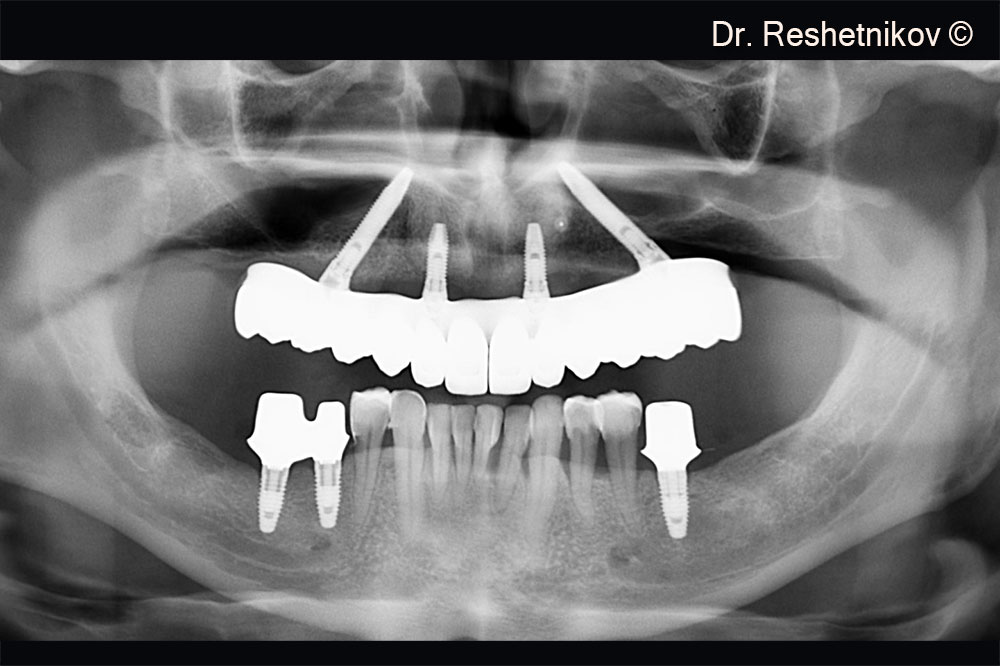

Panoramic radiograph 8 months after implantation with a permanent prosthesis installed on the upper jaw

Panoramic radiograph 8 months after implantation with a permanent prosthesis installed on the upper jaw

Used biomaterials
mp3
mp3®
evolution
Evolution
