Single implant placement in aesthetic region and reconstruction of the bone defect

Dr. Matej Kuliš
Initial situation

A female patient (33 years old) shows a periapical lesion on the right central incisior

Used biomaterials
  • Evolution
  • mp3®
Initial situation. Purulent exudate due to periapical lesion on the right central incisor

Initial situation. Purulent exudate due to periapical lesion on the right central incisor

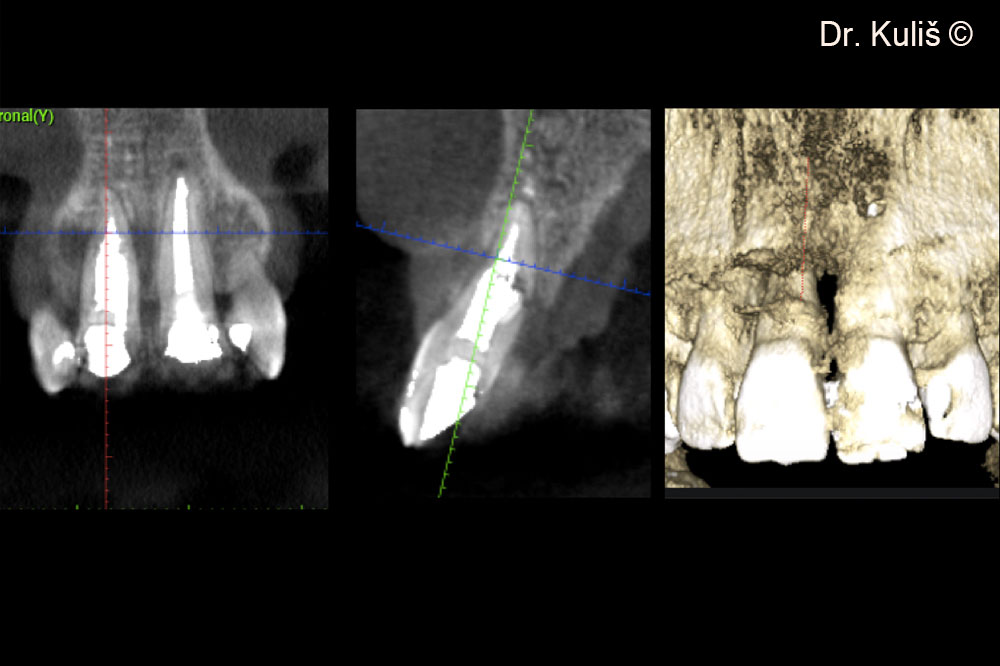

CBCT scan of the initial situation displays buccal bone defect with complete absence of the buccal bone

CBCT scan of the initial situation displays buccal bone defect with complete absence of the buccal bone

Buccal bone defect after extraction and removal of the granulation tissue

Buccal bone defect after extraction and removal of the granulation tissue

Implant placement 3.75mm diameter

Implant placement 3.75mm diameter

Bone augmentation with mp3®

Bone augmentation with mp3®

The membrane Evolution has been adapted to the defect

The membrane Evolution has been adapted to the defect

The membrane and orificie of the extraction socket was covered with palatal pedicle flap

The membrane and orificie of the extraction socket was covered with palatal pedicle flap

Situation after 6 months of healing

Situation after 6 months of healing

Second stage surgery was performed minimally invasive manner with roll flap technique. The picture presents nice bone formation above the implant platform.

Second stage surgery was performed minimally invasive manner with roll flap technique. The picture presents nice bone formation above the implant platform.

Exposing of the implant platform

Exposing of the implant platform

Provisional restoration was delivered immediately after implant uncovering

Provisional restoration was delivered immediately after implant uncovering

X-ray taken after second stage

X-ray taken after second stage

Emergence profile after two months of the healing

Emergence profile after two months of the healing

Emergence profile and implant supracrestal complex

Emergence profile and implant supracrestal complex

Final result 6 months after placement of the final all-ceramic restoration

Final result 6 months after placement of the final all-ceramic restoration

Used biomaterials
mp3
mp3®
evolution
Evolution
