Extraction, guided bone regeneration and delayed guided implant placement

Dr. Irfan Abas
Initial situation

A female patient (68 years old) shows hopeless anteriors

Used biomaterials
  • Evolution
  • Gen-Os®
Initial situation

Initial situation

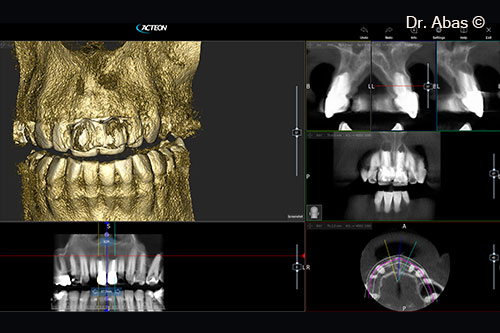

CBCT images of teeth 11 and 21

CBCT images of teeth 11 and 21

Incision design

Incision design

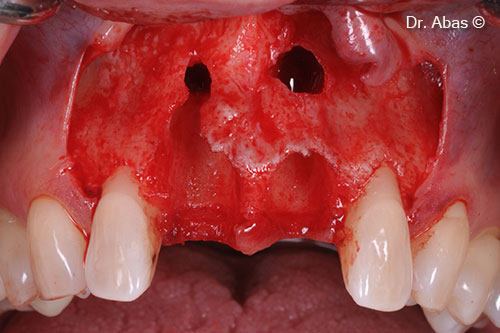

After retracting flap & curettage of inflammatory tissue

After retracting flap & curettage of inflammatory tissue

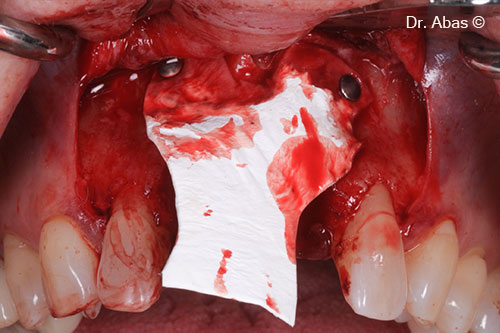

Resorbable membrane secured with bone pins

Resorbable membrane secured with bone pins

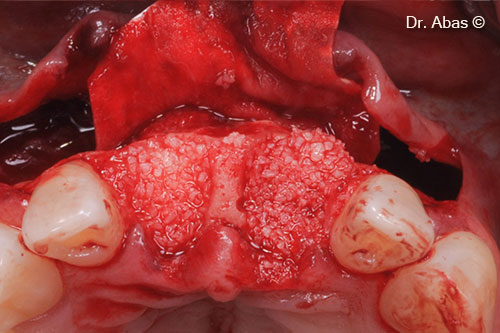

Alveoli reconstructed with sticky bone

Alveoli reconstructed with sticky bone

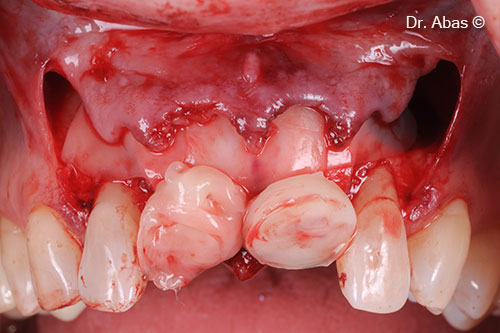

PRF membranes in situ

PRF membranes in situ

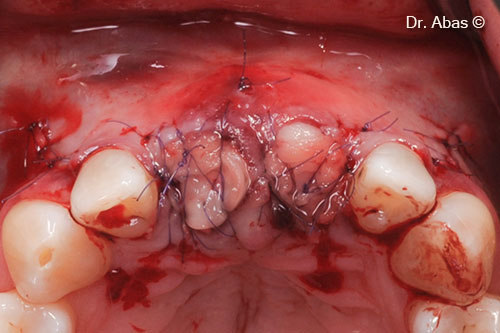

Wound primarily closed with PRF

Wound primarily closed with PRF

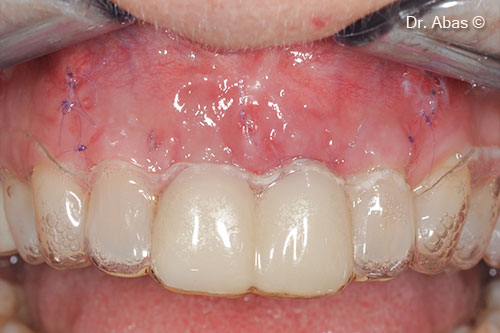

Essix retainer directly after surgery

Essix retainer directly after surgery

Two weeks postoperative

Two weeks postoperative

Soft tissue epithelialization 4 weeks post-op

Soft tissue epithelialization 4 weeks post-op

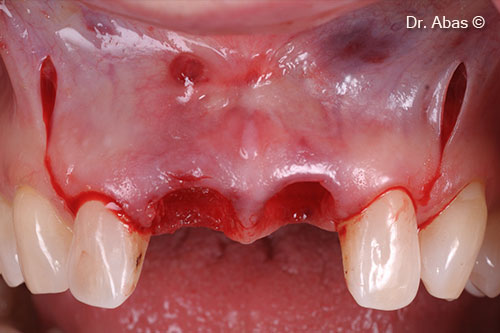

Healed jaw after 4 months

Healed jaw after 4 months

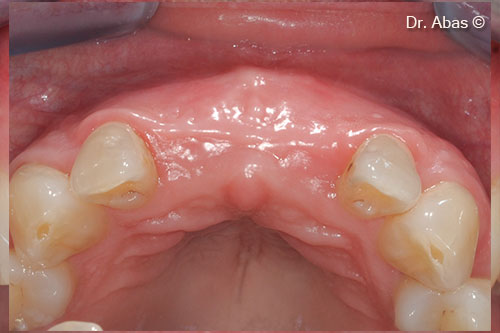

Sufficient width to implant flaplessly

Sufficient width to implant flaplessly

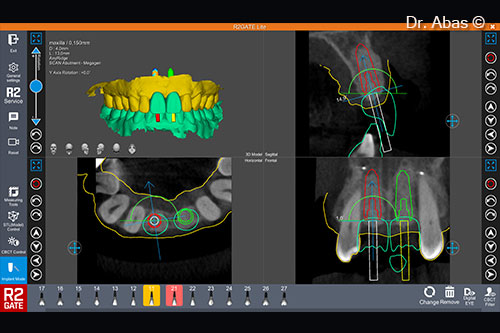

Planning in R2GATE software

Planning in R2GATE software

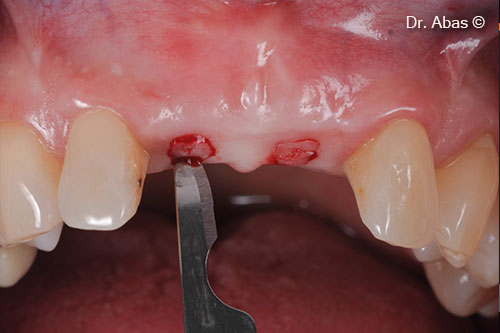

Circular incisions

Circular incisions

Guide in place and drilling in the shaft

Guide in place and drilling in the shaft

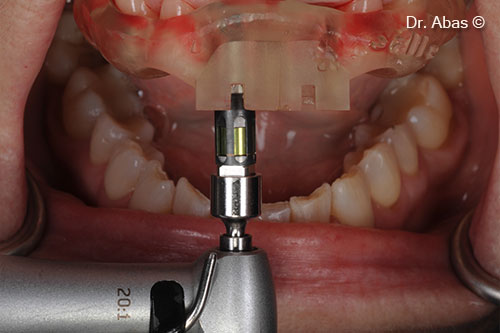

Implant driver through guide

Implant driver through guide

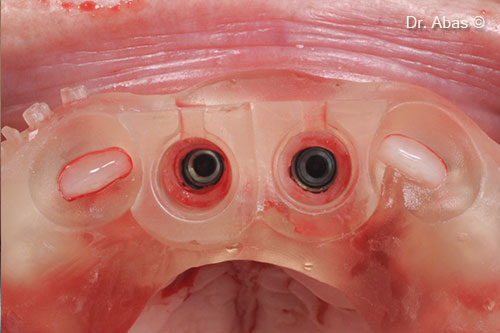

Implants placed through guide

Implants placed through guide

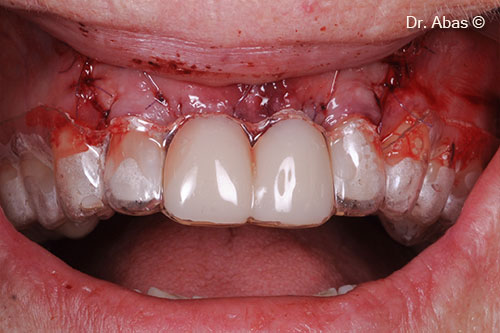

Temporary crowns immediately after implant placement

Temporary crowns immediately after implant placement

Maturation of soft tissues after 6 months

Maturation of soft tissues after 6 months

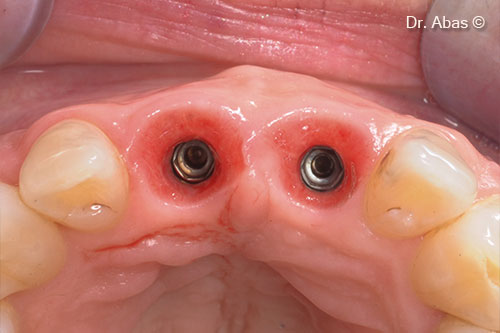

Cervical and emergence profile of the implants

Cervical and emergence profile of the implants

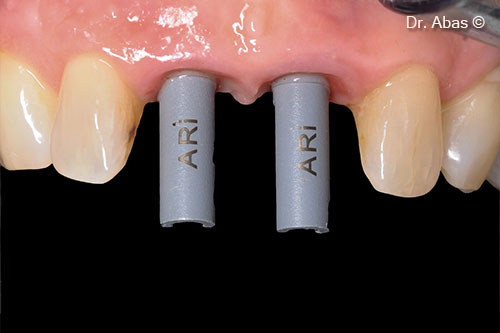

Two scan abutments in situ for digital impression

Two scan abutments in situ for digital impression

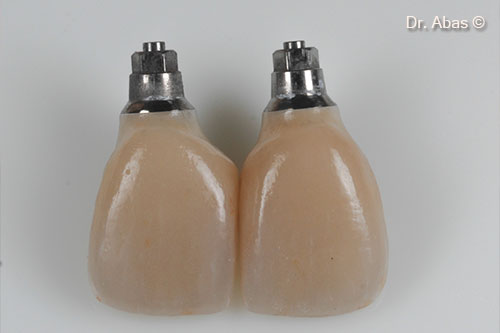

Baked porcelain on zirconia and titanium inserts

Baked porcelain on zirconia and titanium inserts

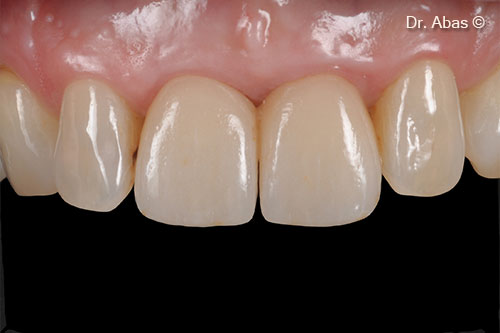

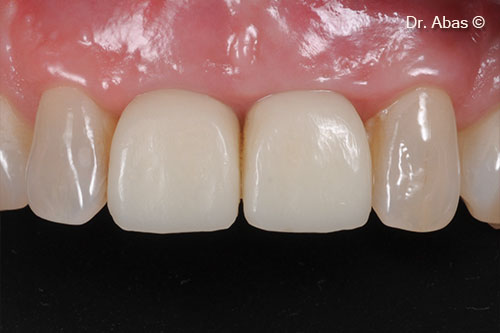

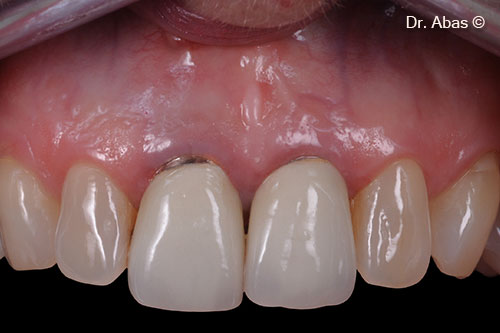

Final result front view

Final result front view

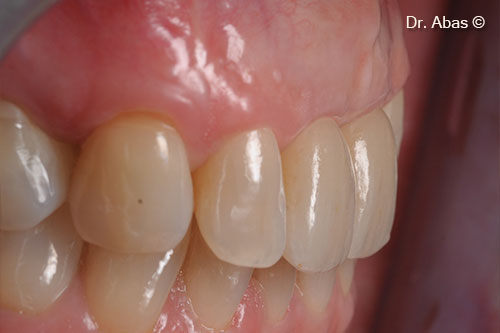

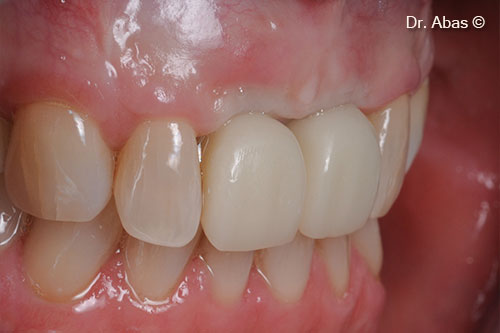

Sufficient thickness of tissues for a natural emergence profile

Sufficient thickness of tissues for a natural emergence profile

Used biomaterials
genos
Gen-Os®
evolution
Evolution
