Vertical and horizontal bone augmentation with the bone shell technique (BST)

Dr. Vladimir Garcia Lozada
Initial situation

A male patient (35 years old) shows a vertical defect

Used biomaterials
  • Lamina®

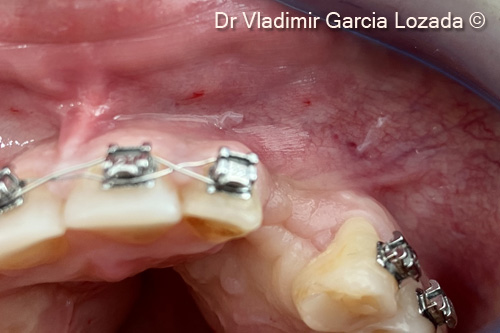

1. Initial clinical situation

1. Initial clinical situation

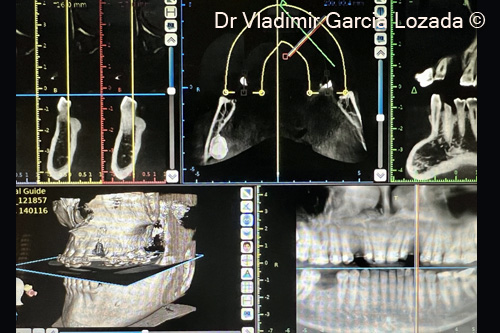

2. CBCT pre-op initial situation

2. CBCT pre-op initial situation

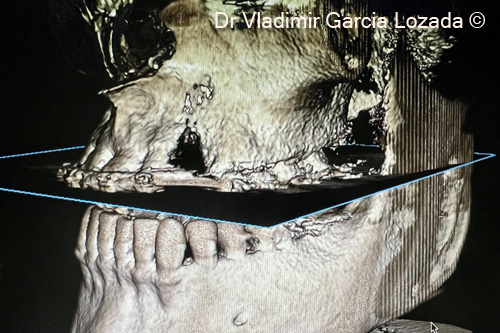

3. CBCT bone defect in site #23

3. CBCT bone defect in site #23

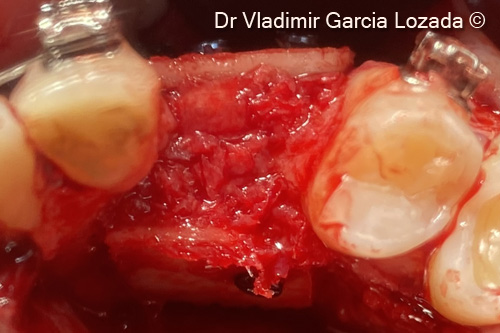

4. Degloving of a full thickness flap observing the three-dimensional defect in site #23

4. Degloving of a full thickness flap observing the three-dimensional defect in site #23

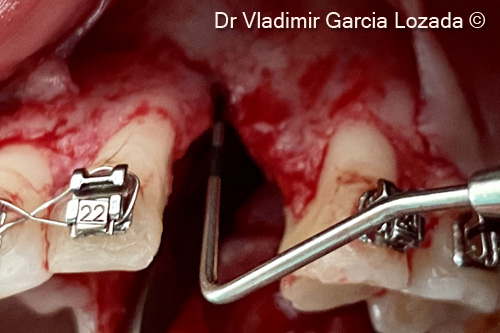

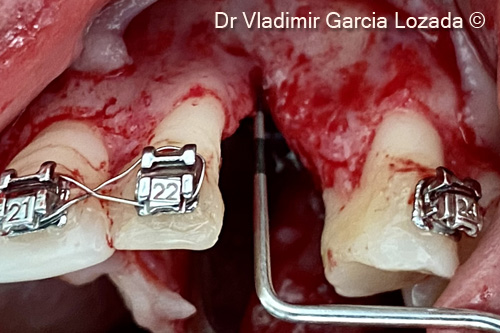

5. Measurement of the defect with a deep probe

5. Measurement of the defect with a deep probe

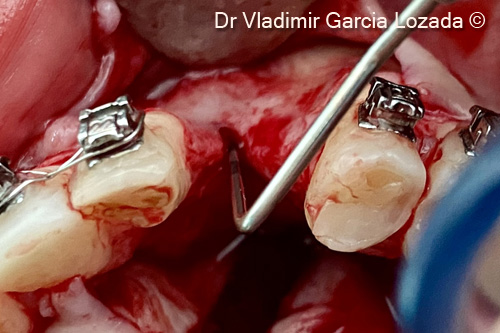

6. Axial clinical view of the three-dimensional defect

6. Axial clinical view of the three-dimensional defect

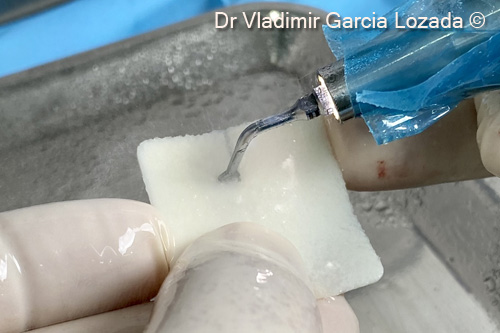

7. Preparation of the OsteoBiol® Soft Cortical Lamina® using a piezosurgery device

7. Preparation of the OsteoBiol® Soft Cortical Lamina® using a piezosurgery device

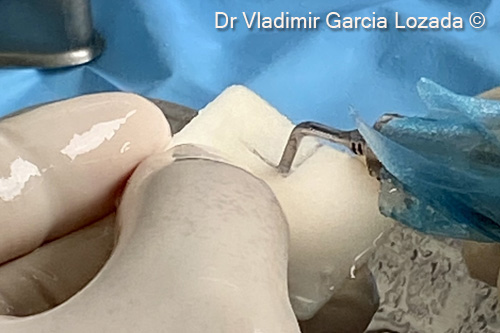

8.  Preparation of the OsteoBiol® Soft Cortical Lamina® according to the size of the bone defect site

8. Preparation of the OsteoBiol® Soft Cortical Lamina® according to the size of the bone defect site

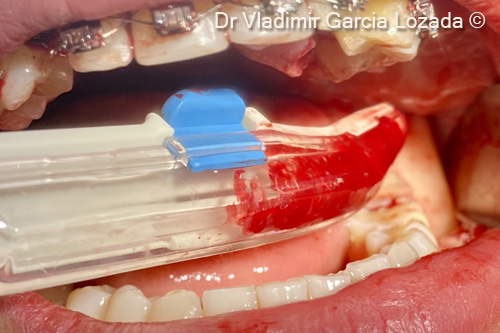

9. Recollection of autogenous bone chips with a safescraper from the mandibular ramus

9. Recollection of autogenous bone chips with a safescraper from the mandibular ramus

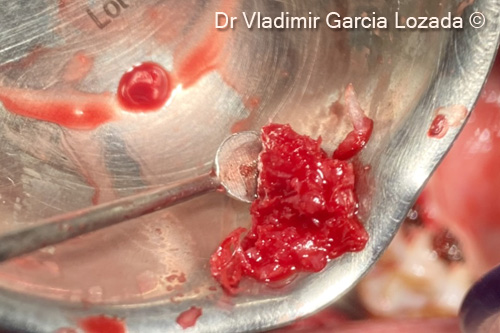

10. Particulated autogenous bone chips recollected

10. Particulated autogenous bone chips recollected

11. Buccal and palatal OsteoBiol® Soft Cortical Lamina® fixation with 4 ostheosyntesis screws

11. Buccal and palatal OsteoBiol® Soft Cortical Lamina® fixation with 4 ostheosyntesis screws

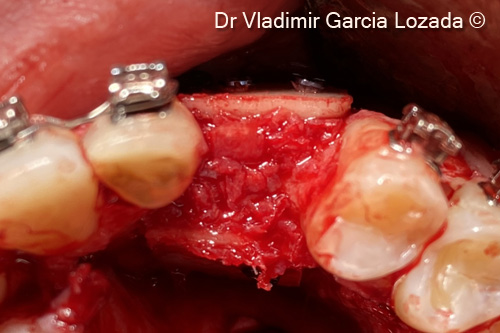

12. Bone defect filling inside the 2 OsteoBiol® Soft Cortical Laminas with autogenous bone chips

12. Bone defect filling inside the 2 OsteoBiol® Soft Cortical Laminas with autogenous bone chips

13. Axial clinical view of the bone augmentation before flap closure

13. Axial clinical view of the bone augmentation before flap closure

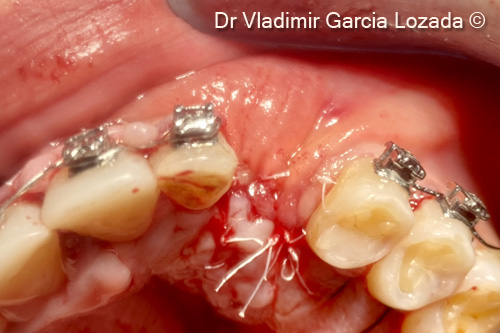

14. Management of soft tissues and flap closure using 5-0 PTFE suture

14. Management of soft tissues and flap closure using 5-0 PTFE suture

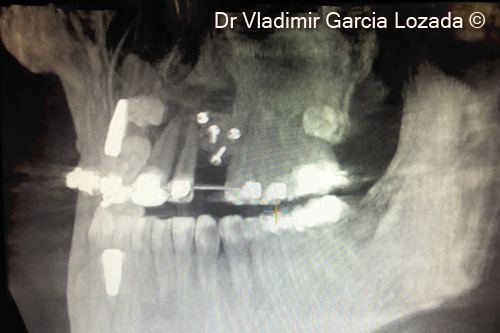

15. CBCT post-op, lateral view

15. CBCT post-op, lateral view

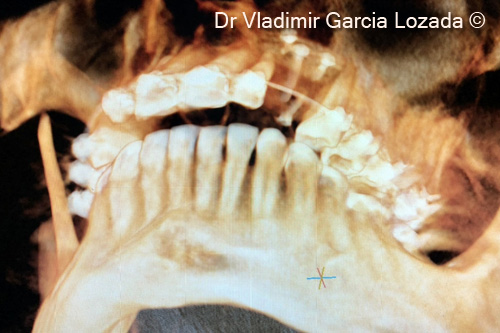

16. CBCT post-op, axial view

16. CBCT post-op, axial view

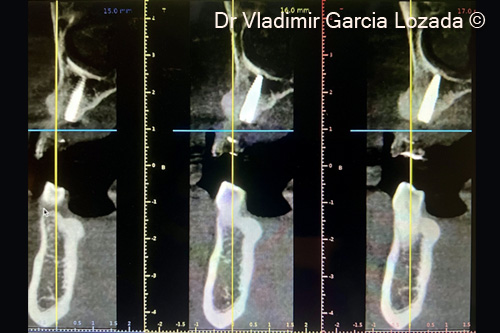

17. CBCT 9 month after implant placement in site #23 with relining procedure, recommended in these cases

17. CBCT 9 month after implant placement in site #23 with relining procedure, recommended in these cases

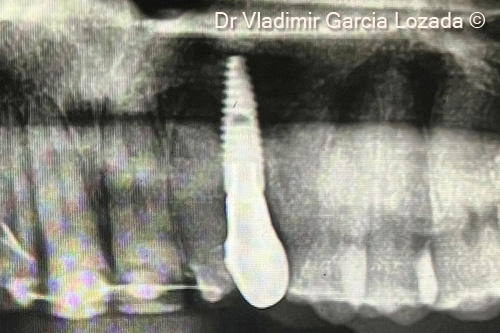

18. X-ray with final restoration

18. X-ray with final restoration
