Multi-Layer Technique and soft tissue augmentation

Dr. Christian Maischberger, Prof. Dr. Hannes Wachtel
Initial situation

A female patient (64 years old) reports high tooth mobility.

Used biomaterials
  • GTO®
  • Lamina®
Initial situation. Full smile. First dental visit in 20 years: tilted and crowded teeth presenting high tooth mobility.

Initial situation. Full smile. First dental visit in 20 years: tilted and crowded teeth presenting high tooth mobility.

Intraoral frontal view – initial situation.

Intraoral frontal view – initial situation.

Intraoral right lateral view – initial situation.

Intraoral right lateral view – initial situation.

Intraoral left lateral view – initial situation.

Intraoral left lateral view – initial situation.

Intraoral occlusal view upper jaw – initial situation.

Intraoral occlusal view upper jaw – initial situation.

Intraoral occlusal view lower jaw – initial situation.

Intraoral occlusal view lower jaw – initial situation.

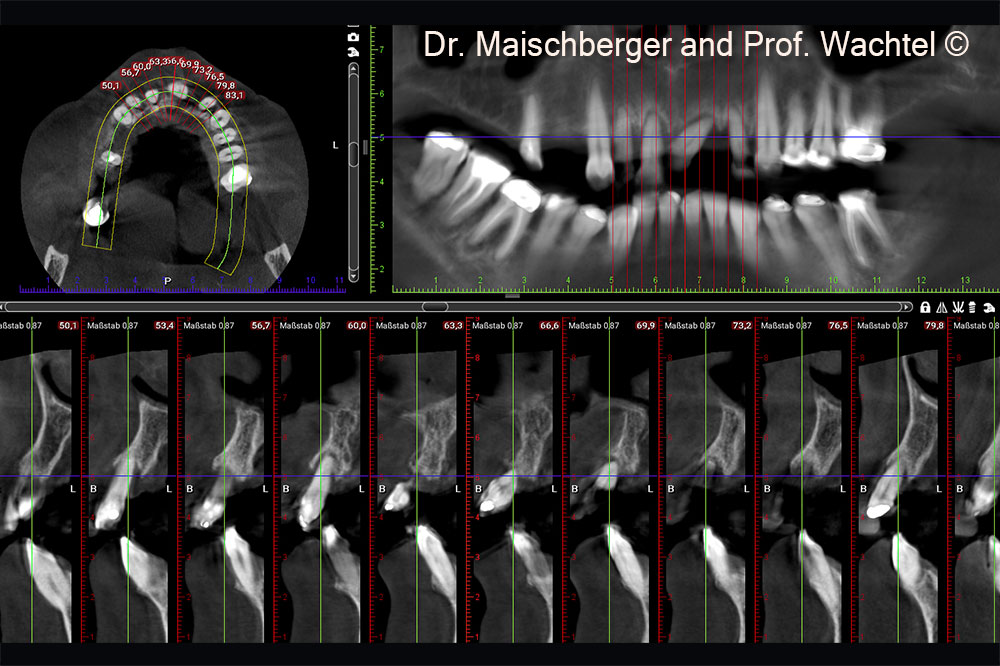

X-ray initial situation.

X-ray initial situation.

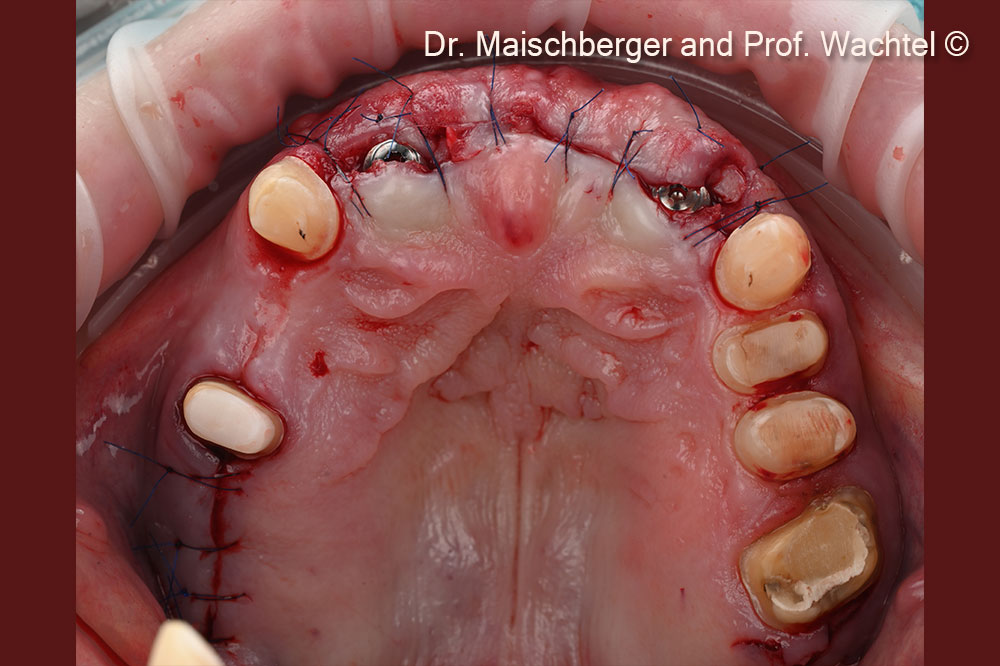

Intraoperative occlusal view upper jaw – simultaneous hard and soft tissue augmentation from region 12-22 using the Lamina®, GTO®, and subepithelial connective tissue graft.

Intraoperative occlusal view upper jaw – simultaneous hard and soft tissue augmentation from region 12-22 using the Lamina®, GTO®, and subepithelial connective tissue graft.

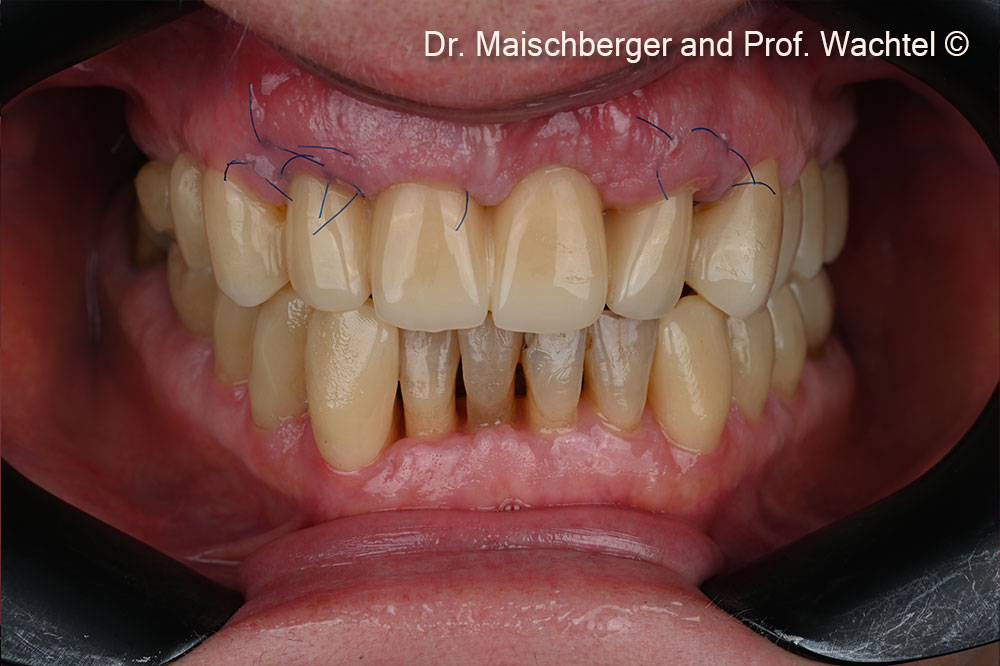

Provisional restoration on the day of surgery. 6mm rise in VOD.

Provisional restoration on the day of surgery. 6mm rise in VOD.

One week after healing.

One week after healing.

Healed soft tissue situation after bone and soft tissue grafting.

Healed soft tissue situation after bone and soft tissue grafting.

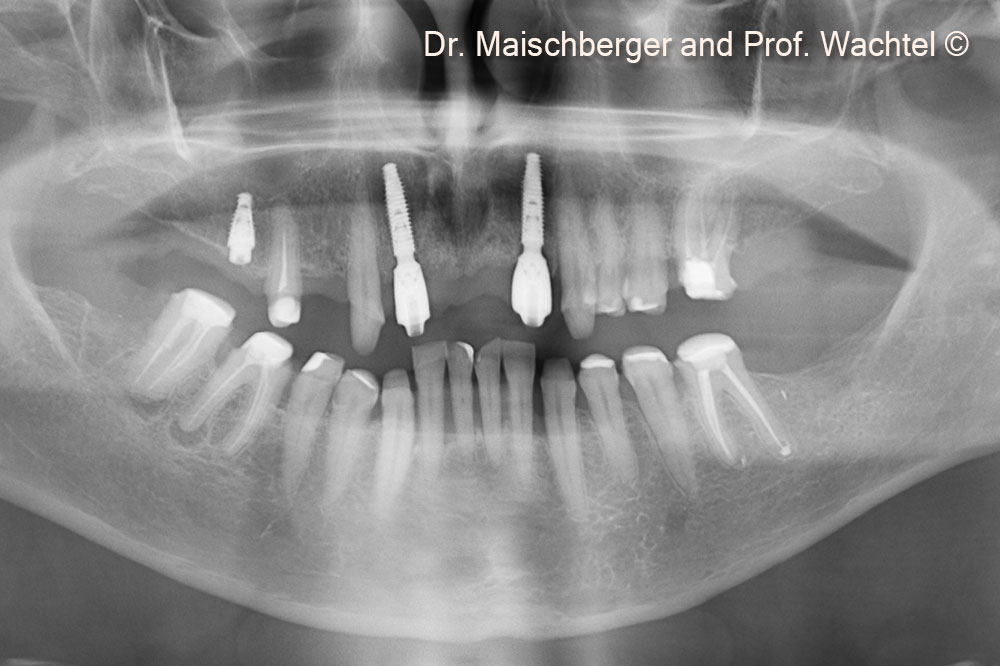

X-ray after implantation and augmentation. Endodontic retreatment #46/#47 was performed later

X-ray after implantation and augmentation. Endodontic retreatment #46/#47 was performed later

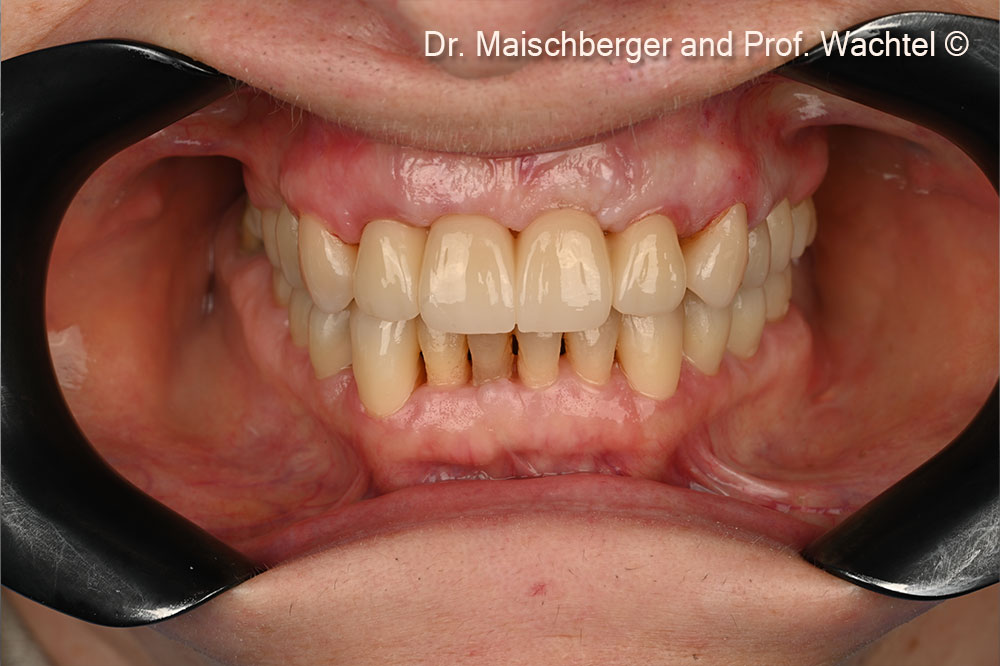

Final restoration – frontal view.

Final restoration – frontal view.

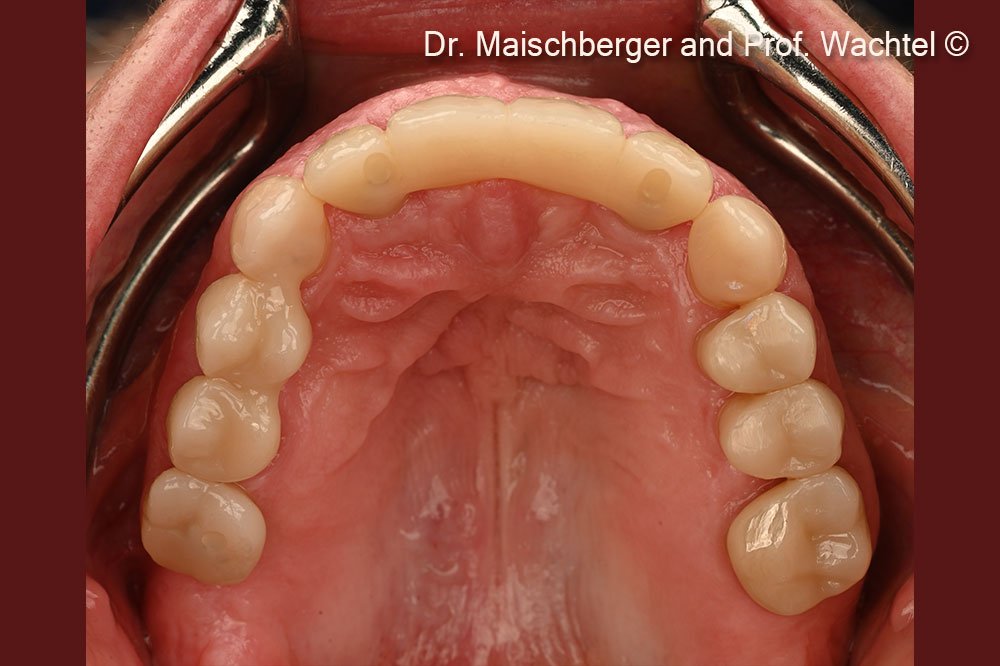

Final restoration – occlusal view – upper jaw.

Final restoration – occlusal view – upper jaw.

Initial situation

Initial situation

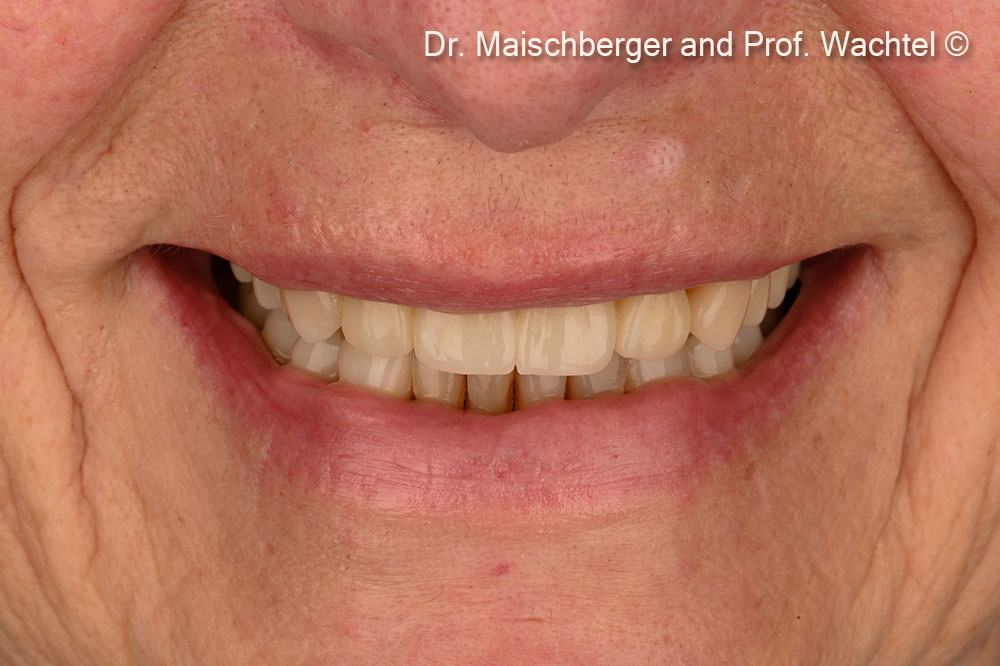

Final smile

Final smile

Used biomaterials
gto
GTO®
lamina
Lamina®
