Clinical case of bilateral sinus lift for implant placement

Dr. Raquel Zita Gomes
Initial situation

A female patient (50 years old) shows pneumatization of both maxillary sinuses

Used biomaterials
  • mp3®
  • Putty
  • Evolution

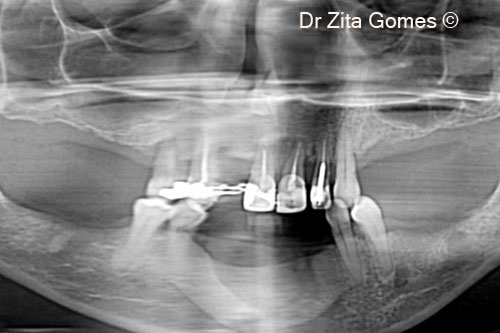

1. Initial panoramic X-ray, showing pneumatization of both maxillary sinuses

1. Initial panoramic X-ray, showing pneumatization of both maxillary sinuses

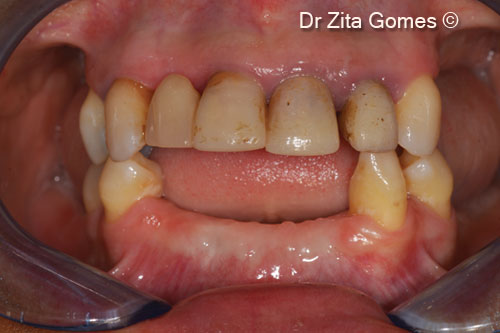

2. Initial intra-oral situation

2. Initial intra-oral situation

3. Full thickness mucoperiosteal flap with mesial release incision, to access the right maxillary sinus

3. Full thickness mucoperiosteal flap with mesial release incision, to access the right maxillary sinus

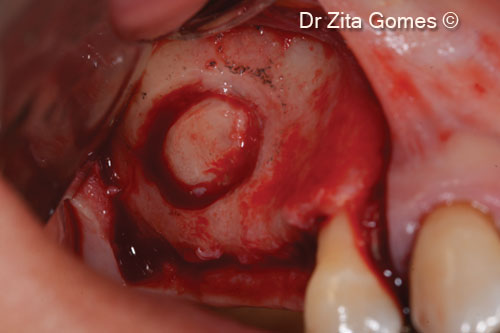

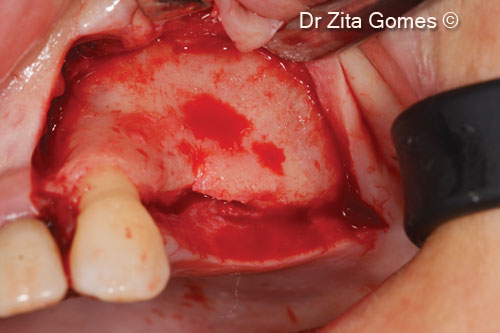

4. Opening of lateral window with a high speed bur

4. Opening of lateral window with a high speed bur

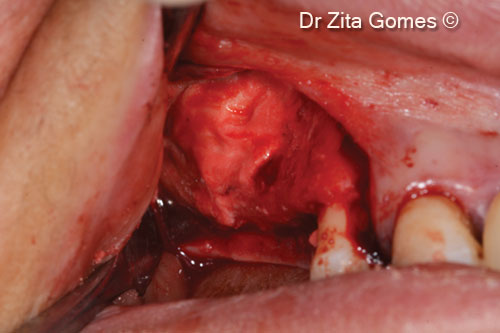

5. Raising of the Schneiderian membrane creating the space for the graft

5. Raising of the Schneiderian membrane creating the space for the graft

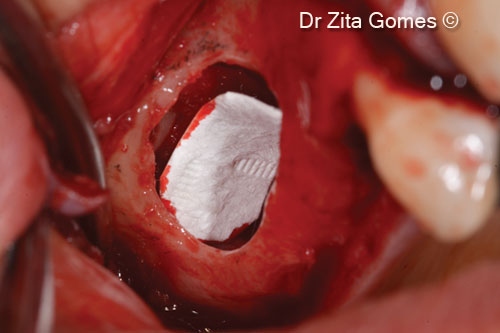

6. OsteoBiol® Evolution membrane protecting the ceiling of the sinus

6. OsteoBiol® Evolution membrane protecting the ceiling of the sinus

7. Beginning filling the lifted sinus with OsteoBiol® Putty

7. Beginning filling the lifted sinus with OsteoBiol® Putty

8. Finishing the filling of the sinus with OsteoBiol® Putty

8. Finishing the filling of the sinus with OsteoBiol® Putty

9. Protecting the xenograft with OsteoBiol® Evolution

9. Protecting the xenograft with OsteoBiol® Evolution

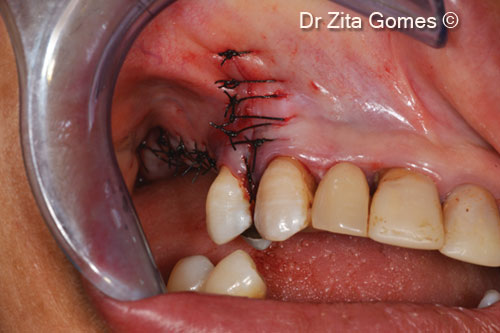

10. Suture of the flap with polyamide 4(0) suture with simple stitches

10. Suture of the flap with polyamide 4(0) suture with simple stitches

11. Full thickness mucoperiosteal flap with mesial release incision, to access the left maxillary sinus

11. Full thickness mucoperiosteal flap with mesial release incision, to access the left maxillary sinus

12. Opening of lateral window with a high speed bur

12. Opening of lateral window with a high speed bur

13. Raising of the Schneiderian membrane of the sinus, creating the space for the graft

13. Raising of the Schneiderian membrane of the sinus, creating the space for the graft

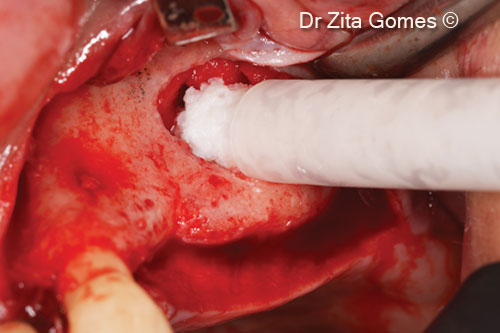

14. Beginning filling the lifted sinus with OsteoBiol® mp3®

14. Beginning filling the lifted sinus with OsteoBiol® mp3®

15. Finishing the filling of the sinus

15. Finishing the filling of the sinus

16. Protecting the xenograft with OsteoBiol® Evolution

16. Protecting the xenograft with OsteoBiol® Evolution

17. Suture of the flap with polyamide 4(0) suture with simple stitches

17. Suture of the flap with polyamide 4(0) suture with simple stitches

18. Four dental implants (2 in each sinus) were placed after 8 months of healing. Rehabilitation with fixed ceramic bridges after 3 months

18. Four dental implants (2 in each sinus) were placed after 8 months of healing. Rehabilitation with fixed ceramic bridges after 3 months

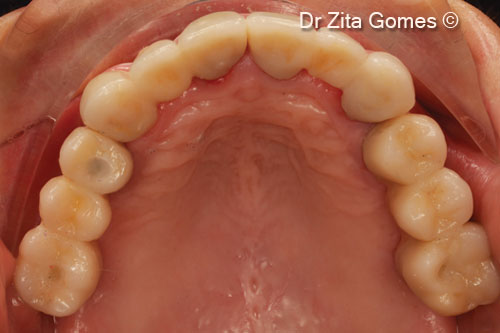

19. Final fixed oral rehabilitation with bridges over implants in the posterior regions and ceramic crows on the anterior teeth (occlusal view)

19. Final fixed oral rehabilitation with bridges over implants in the posterior regions and ceramic crows on the anterior teeth (occlusal view)

20. Patient smile after the rehabilitation

20. Patient smile after the rehabilitation

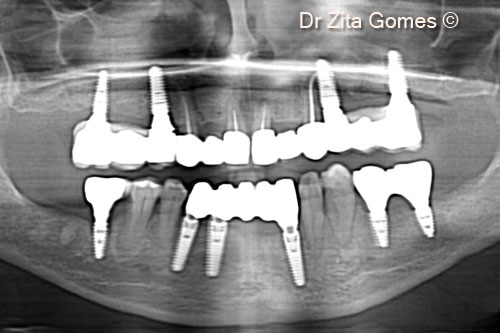

21. Panoramic final X-ray at 5-year follow up

21. Panoramic final X-ray at 5-year follow up
